Instrument manufactured by:

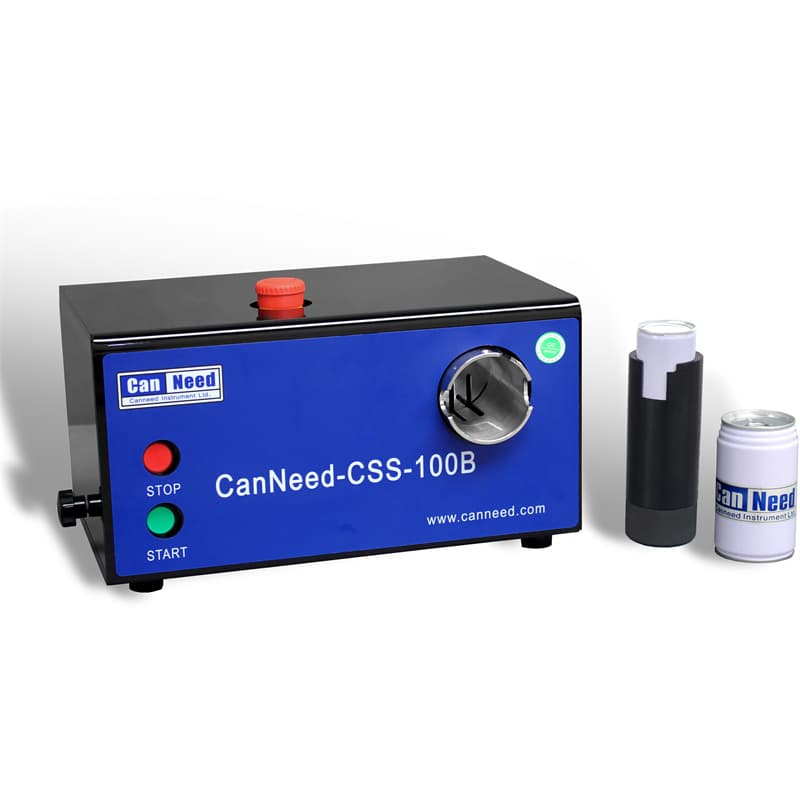

CanNeed-CSS-100B
Anti-noise Seam Saw
Anti-noise seam saw for 2- and 3-piece cans (65 mm dia.) — dual-cut nitrated blades at ~1,000 rpm deliver clean cross-sections for reliable double-seam inspection.
Request a quotation
Technical specifications
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | laboratory |
Watch the CSS-100B Anti-noise Seam Saw in operation
Applications
The CanNeed CSS-100B Anti-noise Seam Saw is a precision instrument designed for high-quality double seam inspections in food and beverage packaging. Featuring an anti-noise design and a specialized guide for 65 mm diameter 2- and 3-piece cans, this saw utilizes nitrated blades rotating at 1,000 rpm to produce a clean, burr-free cut. This ensures high-clarity seam images when used with the VSM 6A Automatic Seam Computer or other automated measurement systems, significantly improving inspection speed and reliability.
Technical Parameter
- Sample can dia.: 65 mm
- Sample type: 2- and 3-piece cans
- Saw blades: 80 x 22 x 0.5 mm (Part No.: HSS-1-80-5)
- Speed: 1,000 rpm
- Power supply: 220V AC
- Power: 100W
- Dimensions: 380 x 240 x 200 mm
- Weight: 12 kg
