Automatic Tensile and Compression Tester
Automatic tensile and compression tester for film, rubber, paper and adhesives, 500 N capacity, 0.01 N resolution, 0.5% accuracy, RS232 output for SPC.
| Detection Object | Carton/label paper/plastic film, Cosmetics/drugs/bagged food, General purpose |
| Test Items | Tensile force/pressure bearing/vertical load/impact resistance |
| Testing Occasions | laboratory |
Applications

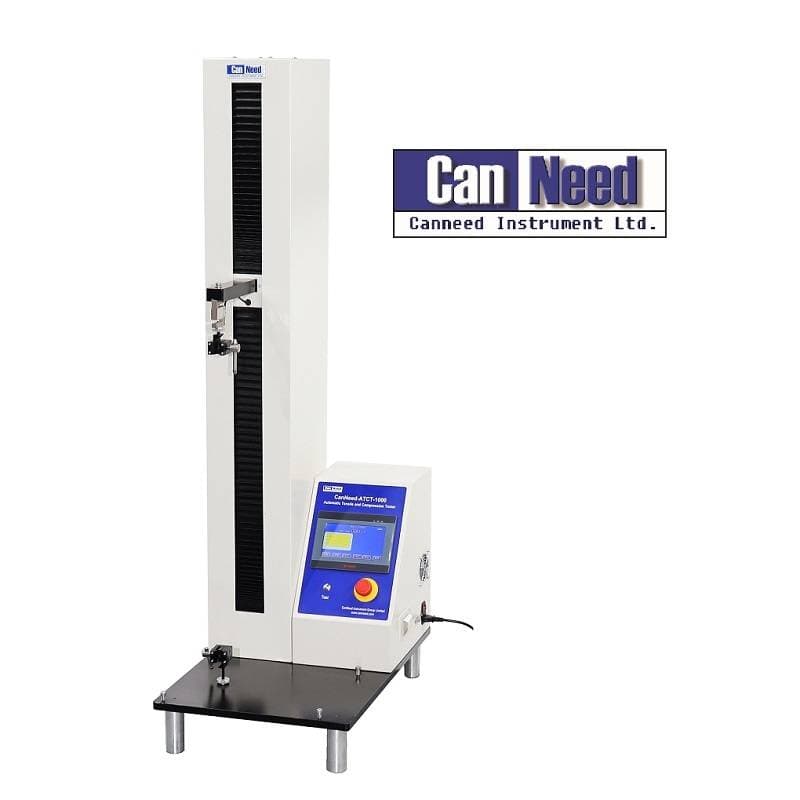

The CanNeed-ATCT-1000 Automatic Tensile and Compression Tester is a high-precision instrument designed for testing tensile stress, peel strength, heat-sealing strength, and puncture resistance in flexible packaging, plastic films, adhesives, and rubber. Engineered to meet GBT16825-2022 standards, this tester provides reliable performance for quality control in food, beverage, and pharmaceutical packaging production lines.
Test Process: Samples are secured between two clamps. The system utilizes a high-precision force sensor and integrated displacement sensor to capture real-time data, calculating tensile, tearing, and deformation performance indicators with high repeatability.
Advantages
- Versatile testing capabilities for a wide range of industry applications.
- Precision ball screw drive with adjustable test speeds for accurate displacement control.
- Intuitive touch screen interface for seamless operation and data visualization.
- Integrated micro-printer and RS232 output for efficient SPC data management.
Technical Parameter
- Measurable Samples: Paper, plastic, rubber, fiber, metal, composite materials, cartons (Max width up to 350mm, other ranges can be customized)
- Measure Range: 500N (50N, 100N, 200N optional)
- Force Resolution: 0.01N
- Specimen Width: 0<L<350mm
- Test effective stroke: 0-1000mm
- Accuracy: 0.5% of full scale
- Test speed range: 0.5mm/min~500mm/min (adjustable)
- Tester dimensions: 475x530x1530mm (LxWxH)
- Power input: AC220V 50Hz
- Environmental requirement: Indoor humidity ≤ 85%, Indoor temperature: 0-40℃
