Hot Wire Bottle Cutter

Applications

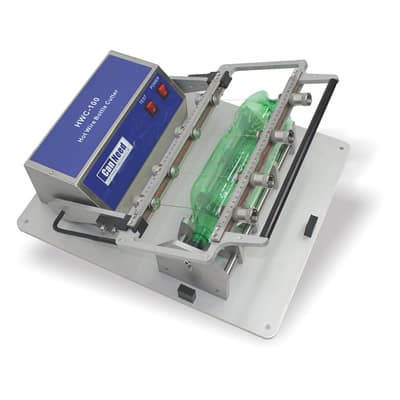

The CanNeed-HWC-100 Hot Wire Bottle Cutter is an industrial-grade PET bottle testing equipment solution designed for precise section weight analysis. Engineered for the food and beverage industry, this unit accurately cuts PET bottles into up to 5 predetermined sections, allowing for weight verification without PET deformation. The system accommodates bottle volumes from 200 ml to 3,000 ml, ensuring clear, repeatable profiles for quality control.

Key Features:

• Precise section weight analysis for up to 5 portions
• Rapid, deformation-free cutting with hot wire technology
• No warm-up time required; energy-efficient operation
• Adjustable supports and precision scales for repeatable results
• Tool-free job changes for varying bottle sizes

Advantages

• Energy Saving Operation: The dual-mode heating system maintains safe wire temperatures during standby and switches to full power instantly for precise cutting, extending wire life.
• Versatile Design: Adjustable bottle finish holders and supports accommodate a wide range of container shapes and sizes without specialized change parts.
• Rapid Setup: No-tool job changes facilitate quick transitions between production runs.
• Customization: Optional fixtures are available for non-round containers.

Technical Parameters

• Bottle Capacity: 200 ml – 3,000 ml
• Max Bottle Length: 483 mm
• Max Bottle Diameter: 157 mm
• Finished Inner Diameter: 12.7 mm – 53.3 mm
• Machine Dimensions: 599 mm L x 635 mm W x 178 mm H
• Weight: 20 kg
• Power: 220 VAC @ 50 Hz (Optional: 115 VAC @ 50/60 Hz)
