Instrument manufactured by:
CanNeed-PDG-d

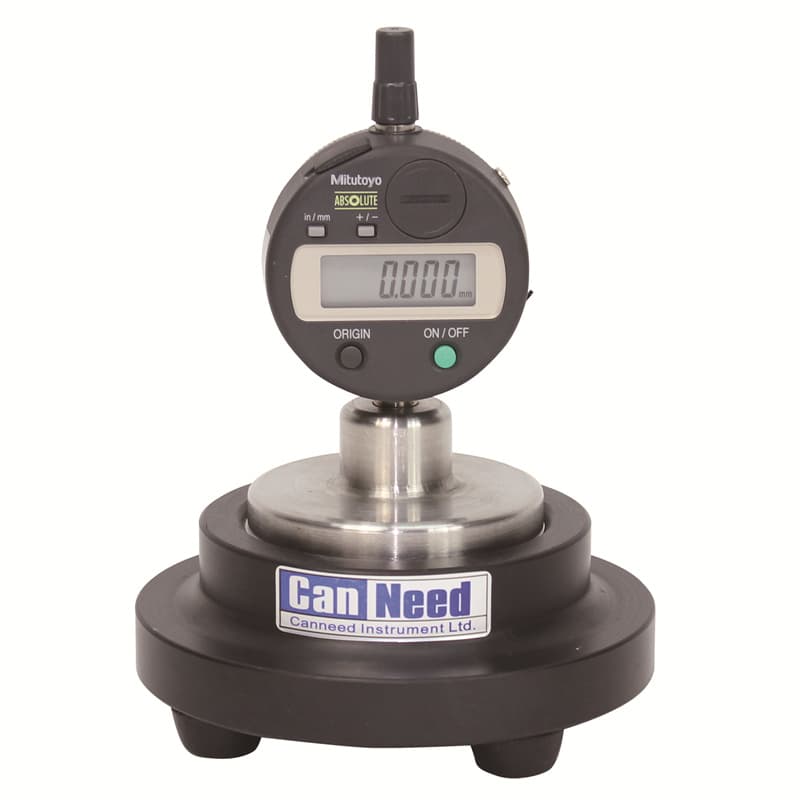

Plane Depth Gauge for Canned Food and Beverage
Similar to AT2E's CDDG-1
Plane depth gauge for canned food and beverage, 0–10 mm range, 0.001 mm resolution — monitors can pressure non-destructively with optional SPC data output.
Request a quote
Technical specifications
| Detection Object | Canned beer/canned beverages/canned food |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |
Applications
The CanNeed-PDG-d Plane Depth Gauge is a precision instrument designed for the food and beverage industry to measure the plane depth of cans. It enables reliable monitoring of internal pressure or vacuum levels without the need for piercing, ensuring non-destructive quality control.
Advantages
- Includes a dedicated plane depth gauge and a ZERO calibration platform for consistent accuracy.
- Optional adapter and cable connectivity allow for seamless integration with computer or SPC systems, automating data collection and eliminating manual recording errors.
Technical Parameters
- Measuring range: 0-10mm (custom sizes available upon request)
- Resolution: 0.001mm
- Accuracy: +/-0.003mm
- Dimensions: ɸ10.6 x 130mm
