Preform Profile Tester

Purpose

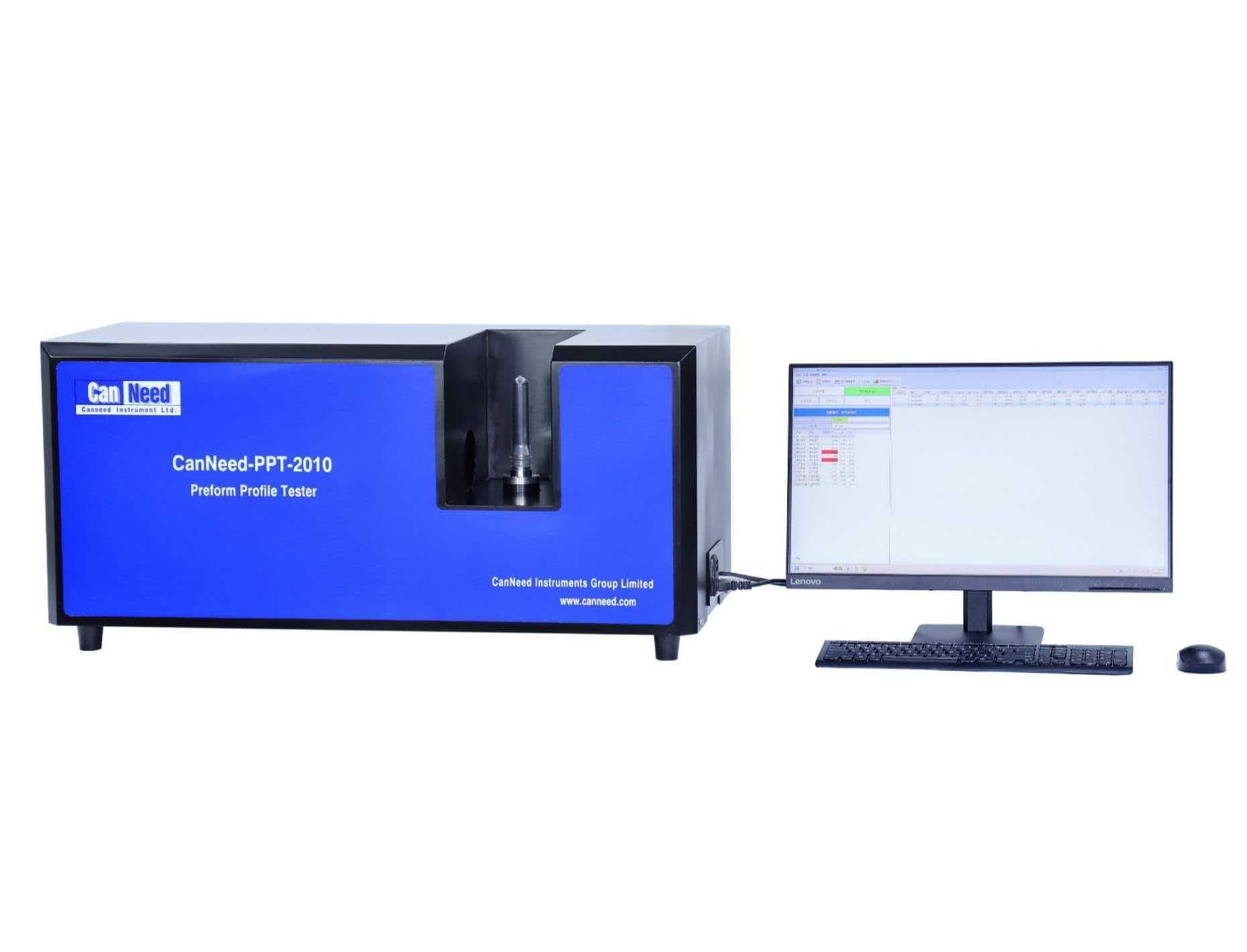

The CanNeed-PPT-2010 PET preform profile tester provides high-precision, non-contact measurement of bottle mouth dimensions for quality control in packaging and food & beverage production. This automated imaging system allows operators to simply place a sample in the testing station and initiate a scan, delivering instant, accurate feedback on critical dimensions. The system automatically saves data and images to a database, ensuring reliable quality management documentation.

The PPT-2010 features a user-friendly, maintenance-free design suitable for preform mouths with heights ≤ 30 mm and diameters < 39 mm. Quick-change positioning fixtures allow for rapid adaptation to different bottle mouth profiles during production.

Benefits:

• Automated Efficiency: One-click operation with rapid measurement cycles as fast as 2.5 seconds.
• Precision Imaging: Non-contact measurement with ±0.01mm accuracy for standard dimensions and ±0.05mm for flying edge measurements.
• Ergonomic Design: Compact, integrated unit (940x400x450mm) requiring no external air or water sources.

Technical Parameters:

Measured Items: Preform mouth outer diameter, thread dimensions (outer/bottom/angle/width/thickness/height/pitch), burglarproof ring diameter/position, bottle mouth height, supporting ring diameter/position, thread start/end positions, locking ring diameter/position, and flying edge metrics.

Measurement Speed: 2.5s (single point), 11s (3-point rotation), 20s (full auto).

Power & Environment: AC220V; dry indoor environment required.

Physical Specs: 940 x 400 x 450 mm; 40 kg.
