Applications

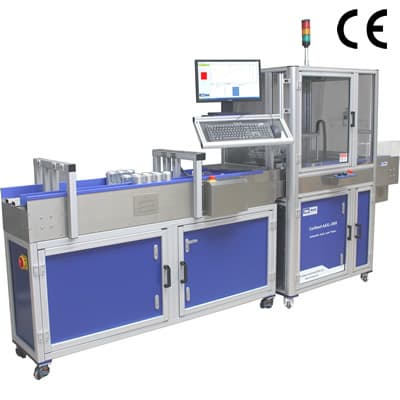

The CanNeed-AAXL-2000 is a fully automated axial load testing system designed for high-precision quality control in the 2-piece can manufacturing industry. By integrating an intelligent mechanical arm and auto-sampling device, the system delivers unattended, constant, and efficient inspection of axial load limits. The instrument automatically conveys samples, performs deformation testing, records the force curve, and exports results directly to SPC systems, ensuring seamless data integration and reduced operator error.
Advantages
● Fully automated axial load measurement for 2-piece cans, reducing labor costs and human error.
● Dual-station design allows simultaneous testing of different can mouth diameters without component changes.
● Integrated visual system for automatic identification of can bottom model numbers.
● Precise servo motor control ensures consistent, stable press speeds.
● Parallel platen architecture guarantees accurate axial force application.
● Real-time display of test curves and force data with integrated overload protection.
● Advanced database management software with customizable reporting and remote diagnostic support via HD camera.
● Durable aluminum structure designed for industrial-grade reliability and ease of maintenance.
Technical Parameter
1) Measuring Range: 0-3000N
2) Resolution: 1N
3) Unit: N, Kg, Lb
4) Moving Distance: 115mm
5) Can Fixture: 113, 200, 202, 206, 209
6) Measurable can size: Straight wall can – 202, 204, 211; Finished can mouth inner diameter – 202, 206; 2-P can volume – 250ml, 330ml, 500ml
7) Power: 220V/50Hz
8) Air supply: ＞ 4bar
9) Appearance: Aluminum structure
10) Dimension: L 3158mm X W 1000mm X H 1900mm (L x W x H)
