Automatic Back End Measurement System
AT2E doesn't have a similar equipment
Automated can end tester measures body height, dome depth, inner diameter, and flange width at ±0.02 mm accuracy — handles 202–211 body diameters with robotic loading and SPC output.
| Detection Object | Two-piece can/aluminum bottle |
| Test Items | Dimensions |
| Testing Occasions | Online/packaging line |
Applications

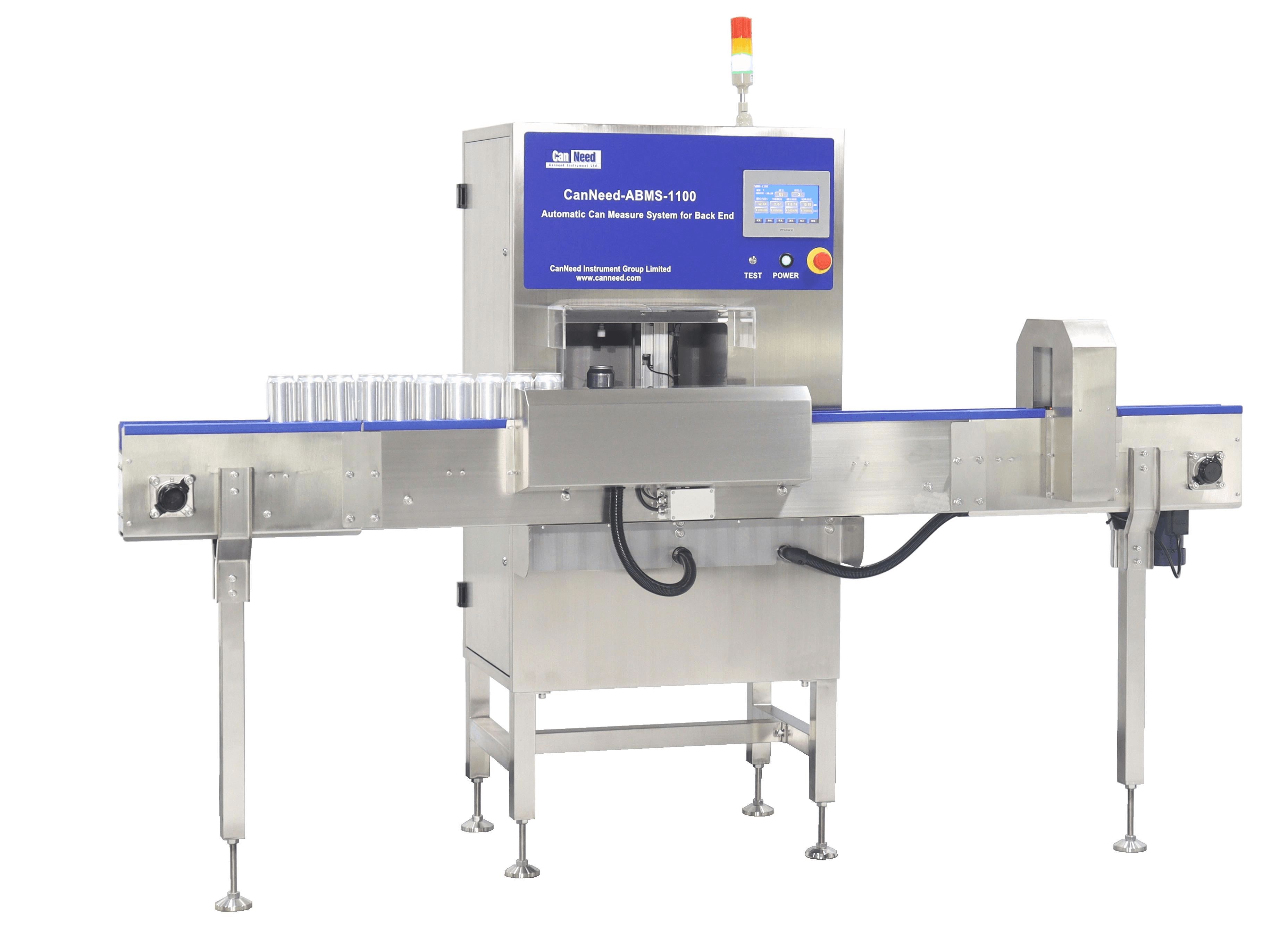

The CanNeed-ABMS-1100 is a fully automated, unattended can end size comprehensive tester designed for high-efficiency quality control in the can-making industry. It utilizes high-precision contact measurement to automatically inspect can body height, dome depth, can end inner diameter, and flange width for two-piece cans, ensuring consistent, repeatable results while reducing labor costs.
Measurement Process
1. Automated Feeding: Optional single or multi-channel feeders transport samples to the inspection area.
2. Robotic Handling: An intelligent robotic arm positions the can for automated rotation and measurement.
3. Precision Inspection: Pneumatic-controlled sensors inspect the sample at 1 to 50 points per rotation.
4. Data Integration: Results are automatically saved and transmitted to your SPC system for real-time analysis.
Key Advantages
- Versatility: Accommodates body diameters of 202, 204, 209, and 211 with heights from 88 to 200 mm without changing fixtures.
- Durability: Features a stainless steel enclosure and tungsten carbide measuring tips for long-term reliability.
- Efficiency: Includes automatic sorting and a dedicated channel for non-conforming samples to facilitate root-cause analysis.
- Maintenance: Separate electrical and mechanical compartments allow for easy access and servicing.
Technical Specifications
- Resolution: 0.005mm
- Accuracy: ±0.02mm
- Testing Speed: 120s/can (3 points/rev)
- Operating Temperature: -20℃ to 50℃
- Air Supply: 4-6 bar dry compressed air
- Power: 220V/50Hz
- Dimensions: 2700 x 1000 x 2000 mm (with feeder)
- Weight: 260kg (with feeder)
