Applications

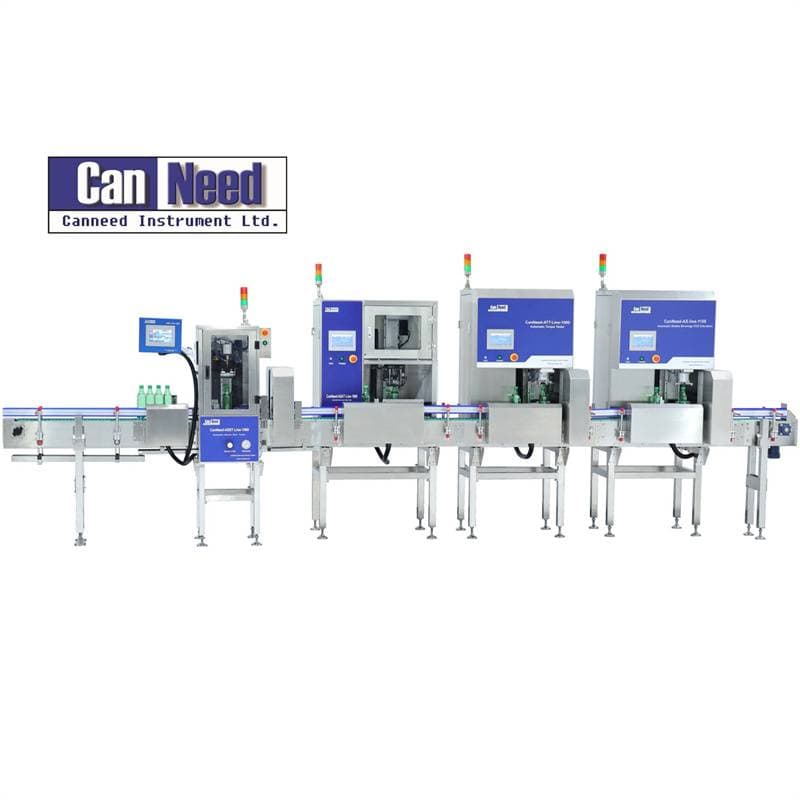

The CanNeed-AMPT-Line-1000 Automatic Beverage Multi-Parameter Tester is a high-precision quality control solution designed for the food & beverage industry. This automated system streamlines PET bottle testing by measuring key parameters including:
- Torque
- Secure seal integrity
- Pressure resistance and CO2 levels
- Sealing angle
- Weight
- Top load
These six test items can be customized into a single 6-in-1 combination. By utilizing fully automatic conveyor feeding, the system eliminates human error and ensures consistent, reliable data collection across production lines.
Advantages
- Seamless integration with production lines for fully automatic sampling and measurement.
- Automatic data output via RS232 for streamlined reporting.
- High-speed detection with a design optimized for easy maintenance.
- Durable stainless steel housing suitable for industrial environments.
- Internal storage capacity for up to 1000 test records.
- Versatile design compatible with various round and square bottle sizes.
Technical Parameter
- Torque Range & Accuracy：00.00 – 10N.m(100Kgf.cm) , Accuracy: ±0.5% (full scale)
- Secure Seal Measure Range & Accuracy: 0 – 1.2Mpa, Accuracy: 0.1Kpa
- Pressure / CO2 Measure Range & Accuracy: Pressure: -1-6 bar, CO2: 0.00 – 9.99 g/L(0.25-1.00 gew.% or 1.25-5.00 % V/V), Temperature: -10 -60 ℃
- Sealing Angle Range & Accuracy: 0 – 180°, Resolution: ±0.1°, Accuracy: ±1.5°
- Weighing Range & Accuracy: 1-2000g, Accuracy: ± 0.01g
- Top Load Measure Range & Accuracy: Up to 1000N, Accuracy: ≥±1.0% (full scale)
- Bottle Height Range: 130~360mm, other sizes by ordering
- Cap Size Range: ∅ 27.5~∅ 50mm, other sizes by ordering
- Bottle Diameter Range: ￠50-￠125mm, other sizes by ordering
- Data Output: RS-232 COM cable
- Power & Air Supply: 220VAC / 50Hz, Air supply: 5~8Bar
- Machine Frame Material: Stainless steel
- Operating Temperature: Indoor: 0~45℃, Humidity: 0~85%
