Automatic Beverage Multi-Parameter Tester

Applications

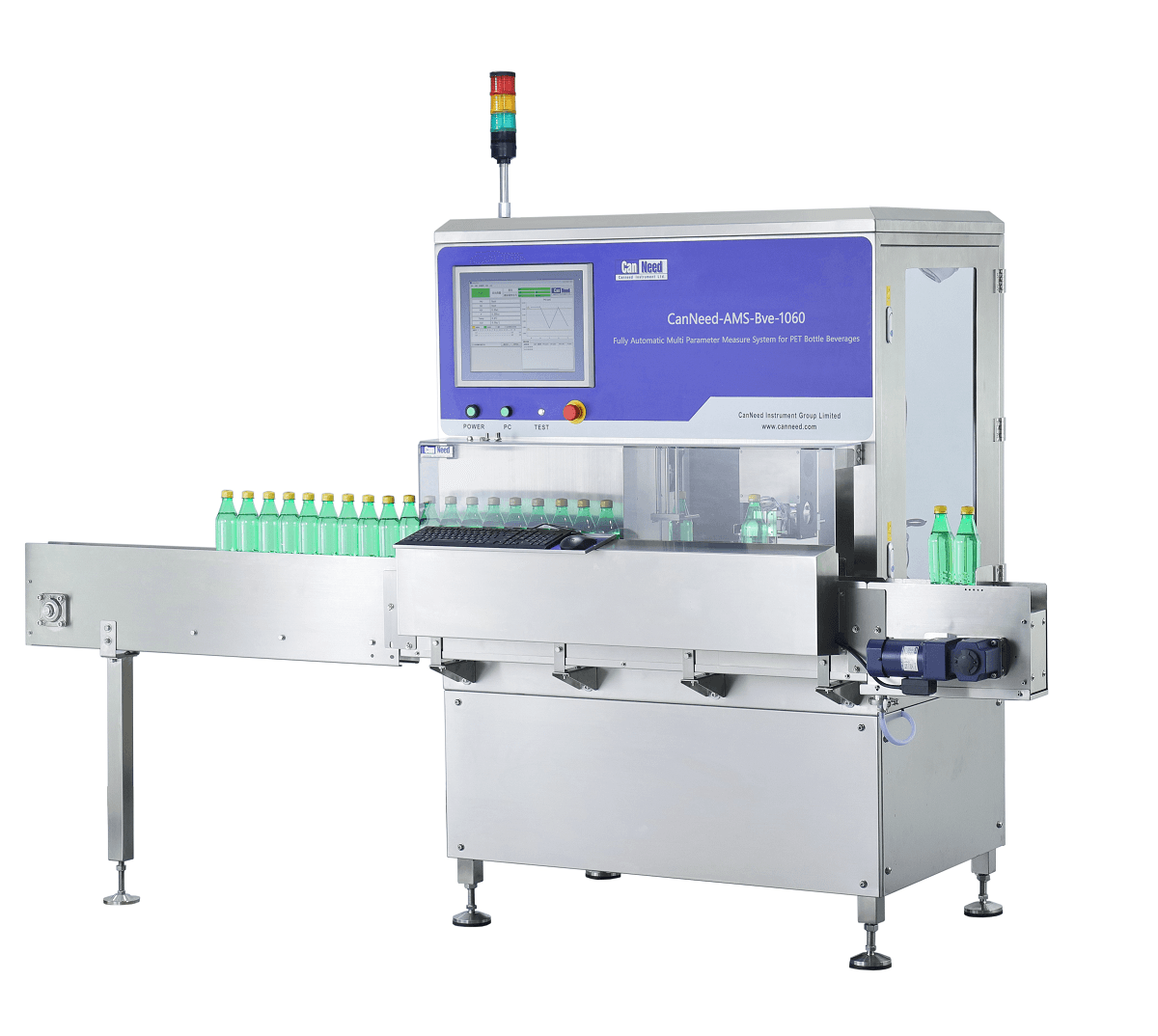

The CanNeed-AMS-Bev-1060 is a fully automatic beverage multi-parameter inspection machine designed for high-speed quality control in food and beverage production lines. It enables rapid, automated testing of bottled products, significantly reducing inspection time during product changeovers.

The CanNeed-AMS-Bev-1060 automatically measures: 1. Liquid level; 2. Net content (by weighing); 3. Sealing angle; 4. Torque; 5. Cap seal tightness. The system is modular and can be extended to include headspace oxygen content, internal pressure, or CO₂ content.

Technical Advantages

• High Throughput: Simultaneous multi-workstation operation for rapid test results.
• Automated Workflow: Features conveyor belt feeding, automatic measurement, and waste disposal to eliminate human error.
• Versatility: Compatible with various round and square bottles; customizable diameter and height ranges.
• Data Integration: Automatic data transmission via RS-232 with storage for up to 1,000 records.
• Industrial Build: Durable stainless steel construction suitable for beverage processing environments.

Technical Specifications

Liquid Level: Accuracy ±2mm
Net Content: 1–2000g (Accuracy ±0.01g)
Sealing Angle: 0–180°
Torque: 0–10N.m (Accuracy ±0.5%)
Sealing Tightness: 0–1.2Mpa (Accuracy 0.1Kpa)
Bottle Dimensions: Height 150–330mm, Diameter 48–90mm (Customizable)
Cap Diameter: 27.5–50mm (Customizable)
Power/Air: AC220V, 50Hz / 0.4–0.6MPa
Dimensions: Main Unit 1900 × 900 × 1900 mm; Full System 4000 × 900 × 1900 mm
Weight: Approx. 400kg
