Fully Automatic Beverage Total Package Oxygen Analyzer (Valve-Number Sampling)
AT2E doesn't have a similar equipment
Automatic beverage TPO analyzer measuring total oxygen 0–2000 ppb (±2%) plus CO₂ and headspace — unattended in-line QC for beer filling lines.
Applications

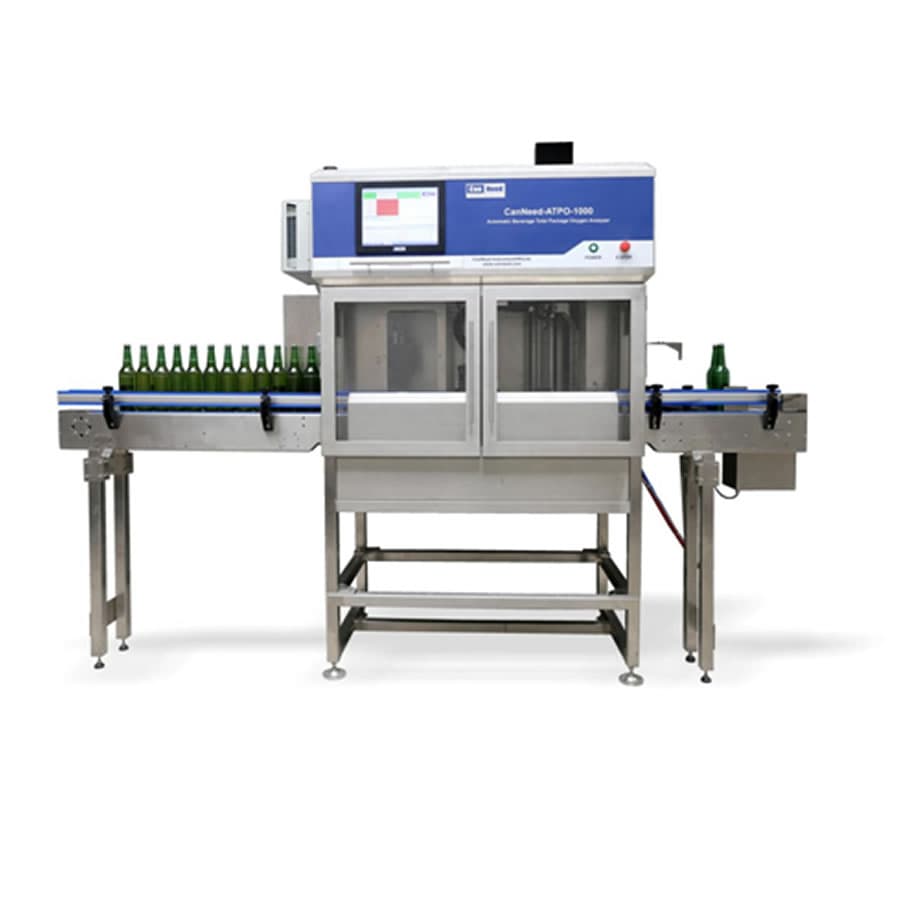

The CanNeed-ATPO-1000 Automatic Beverage Total Package Oxygen Analyzer is a fully automated system designed for real-time monitoring of total oxygen in beer, suitable for both in-line and off-line production environments. By analyzing total oxygen fluctuations at specific filling valves, this Automatic Beverage Total Package Oxygen Analyzer provides proactive warnings to prevent quality accidents, reduce product waste, and ensure filling stability. It is an essential tool for quality control and HACCP compliance in the beverage industry.
Testing Parameters: Total Oxygen (TPO), Carbon Dioxide (CO₂), and Headspace Volume (HSO).
Principle
The CanNeed-ATPO-1000 utilizes an advanced optical fluorescence sensor for high-accuracy, low-sample-volume measurements. It automates sample transmission, pretreatment (gas-liquid equilibrium and temperature control), and parameter calculation based on the Uhlig formula (TPO = DO + Headspace Oxygen).
Measuring Process
- Automatic sampling via the ID-Sampler-1000 Identification Valve Sampling System.
- Automated delivery and pretreatment of samples.
- Unattended measurement controlled by integrated software.
- Automated shaking and transport to the measuring station.
- Data logging and automatic database storage.
Advantages
- Efficiency: Online automatic measurement reduces labor costs and eliminates manual error.
- Precision: High-frequency sampling and real-time monitoring of filling line stability to maximize shelf-life.
- Data Integration: Seamless export to SPC and Excel for statistical analysis and regulatory reporting.
Technical Specifications
Installation Requirements: Water, Compressed Air (>5 bar), High-purity N2 (>99.999%), 220V/10A power.
Bottle Compatibility: Diameter ≤110mm, Height ≤320mm (Crown cap). Special bottle types subject to evaluation.
- Total/Dissolved Oxygen: Range 0–2000 ppb; Accuracy ±2%.
- Temperature: Range -5.0 to 40 °C; Accuracy ±0.1°C.
- Pressure: Range 0.0–5.0 Bar; Accuracy ±0.02 bar.
- CO₂: Range 2–15 g/l; Accuracy ±0.1 g/l.
