Automatic Buckle Tester for Can Bottom

Applications

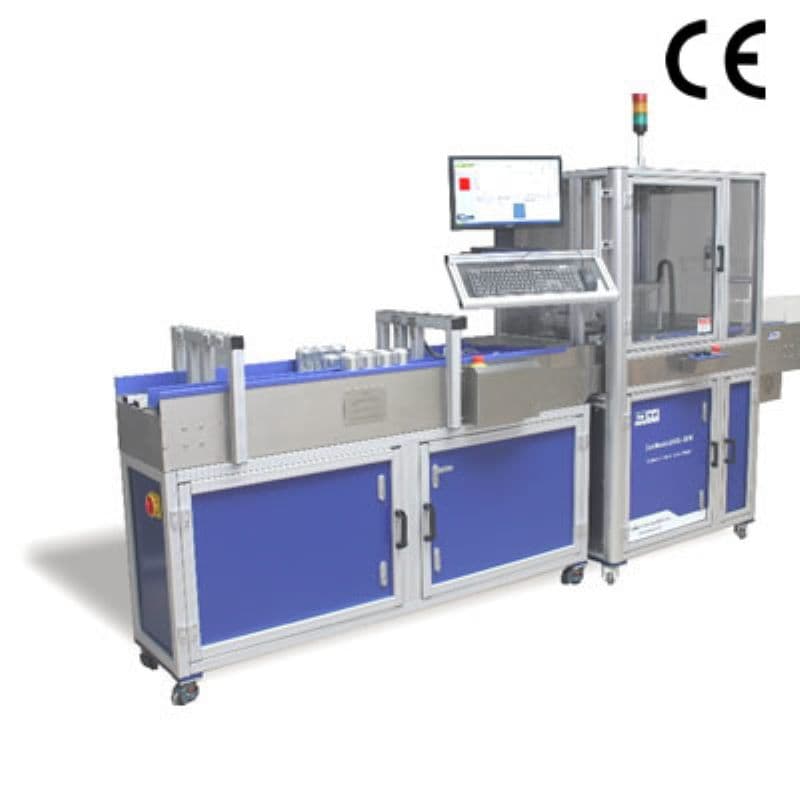

The CanNeed-ACBT-1000 Automatic Buckle Tester is a fully automated testing instrument designed for the can-making industry to determine the precise pressure at which a can bottom buckles or a dome reverses. Featuring an integrated dome growth function, this system enables unattended, online measurement to improve inspection efficiency and accuracy. The ACBT-1000 utilizes an auto-sampling device and mechanical arm to convey cans to the testing station, supporting various diameters and heights without the need for manual clamp adjustments. Test results are seamlessly integrated into SPC systems for real-time data management.

Advantages

• Automated Precision: Measures buckling pressure and dome growth, eliminating human error and reducing labor costs.
• Versatile Testing: Multi-channel sampling allows for testing different can diameters and heights (necked-in or straight wall) simultaneously without clamp changes.
• Advanced Identification: Integrated visual system identifies can bottom modes automatically.
• Flexible Modes: Supports Buckle, Dome Growth, and Length measurement modes.
• Data Integration: Powerful database software with SPC connectivity, Excel export, and customizable reporting.
• Remote Support: Equipped with an HD camera for efficient remote diagnostics and maintenance.
• High Accuracy: Utilizes precision sensors with user-selectable units (Psi, bar, Kpa) and real-time curve visualization.

Technical Parameter

1) Measuring range: 0-900Kpa
2) Resolution: 1Kpa
3) Measuring can types: 2-pc aluminum cans (body diameters: 202/204/211; mouth inner diameters: 200/202/206; heights: 89mm-169mm)
4) Power: 220V 50Hz
5) Air pressure: Over 4 bars
6) Appearance: Aluminum structure
7) Dimension: 3158 X 1000 X 1900 mm (L x W x H)
