Automatic Buckle Tester for Loose Ends

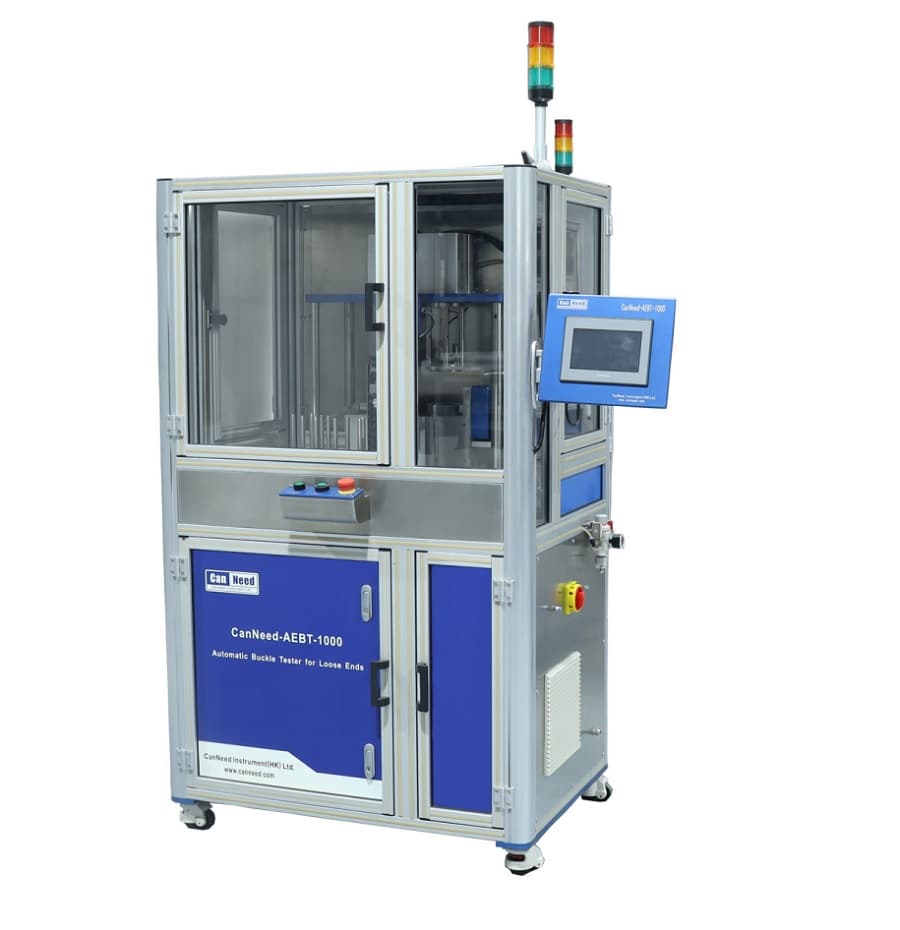

The CanNeed-AEBT-1000 Automatic Buckle Tester is a precision instrument designed for the food and beverage packaging industry to measure the exact pressure at which can ends buckle. This versatile system supports three testing modes—Buckle Test, Missile Test, and Score Burst Test—and features interchangeable parts for rapid setup across various end diameters.

Applications

The AEBT-1000 is engineered for rigorous quality control in can manufacturing. It provides precise pressure resistance testing for ends of varying sizes. With the addition of a special clamp, the unit can also perform score line cracking tests. Users can easily swap components to accommodate different end diameters within seconds.

Advantages

1. Versatile Testing: Includes three distinct modes: Buckle, Missile, and Score Burst.
2. Industry Standard: Essential equipment for measuring end pressure resistance in high-speed can production lines.
3. Automated Efficiency: Features automatic sampling and unattended operation for high-throughput environments.
4. Data Integration: Equipped with a PLC touch-screen interface and RS232 output for seamless SPC system connectivity.
5. Precision Control: Offers adjustable pressure speeds and a built-in pneumatic pressure-increasing valve for multi-level testing.
6. Safety First: Includes multi-safety apparatus and integrated overload protection.
7. Comprehensive Reporting: Automatically calculates average, maximum, and minimum values for batch sample tests.

Technical Parameters

● Measure range: 0-900 KPa (0.9Mpa)
● Resolution: 1 KPa
● Accuracy: 0.5% F.S.
● Data Output: RS232
● Unit: KPa, psi, bar
● Air Supply: 0.4-0.6 MPa
● Power: 230V/50Hz
● Dimension: L1430 x W1040 x H2095mm
