Instrument manufactured by:
CanNeed-ACBT+AAXL-2000

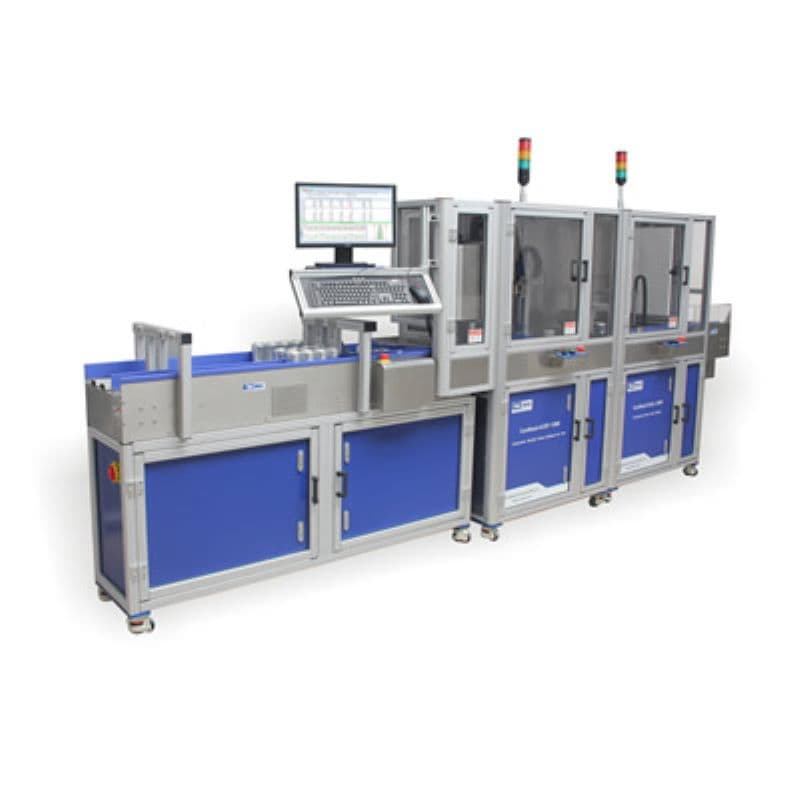

Automatic Can Resistance Tester
Automatic can resistance tester for 2-piece cans (202–211 dia); dual-station, unattended axial load and buckle testing cuts labour cost and error.
Request a quotation
Technical specifications
| Detection Object | Two-piece can/aluminum bottle |
| Test Items | Tensile force/pressure bearing/vertical load/impact resistance |
| Testing Occasions | Online/packaging line |
Applications
The CanNeed-AAXL-2000 is an automated axial load tester designed for high-speed 2-piece can production lines in the food and beverage industry. This system enables constant, unattended inspection to ensure structural integrity. The CanNeed-ACBT-1000 serves as a fully automatic buckle tester, determining precise pressure thresholds for can bottom buckling and dome reversal with integrated dome growth monitoring.
Advantages
- Unattended On-line Measurement: Reduces labor costs and eliminates human error in quality control.
- Dual-Station Efficiency: Simultaneously measures two samples with different inner diameters without requiring component changes.
- Multi-Channel Sampling: High-throughput testing for various can specifications.
- Data Management: Includes integrated software for statistical analysis, data querying, and customizable enterprise reporting.
Technical Parameters
- Measurable 2-P Can Dia: 202, 204, 211; Volume: 250ml, 330ml, 500ml
- Power: 220V/50Hz
- Air Pressure: > 4 bar
- Construction: Industrial-grade aluminum
- Dimensions: 4300mm x 800mm x 1800mm (L x W x H)
