Automatic EOE Score Residue and Progression Measurement System (Non-Contact)
Better than AT2E's SRG-1
Automatic laser system measures EOE score residue and rivet convex progression with accuracy better than 1 µm and 0.1 µm resolution — cuts batch inspection to ~10 seconds per sample.
| Detection Object | End/crown cap/tab cap/screw cap/claw opening cap |
| Test Items | thickness |
| Testing Occasions | laboratory |
Applications

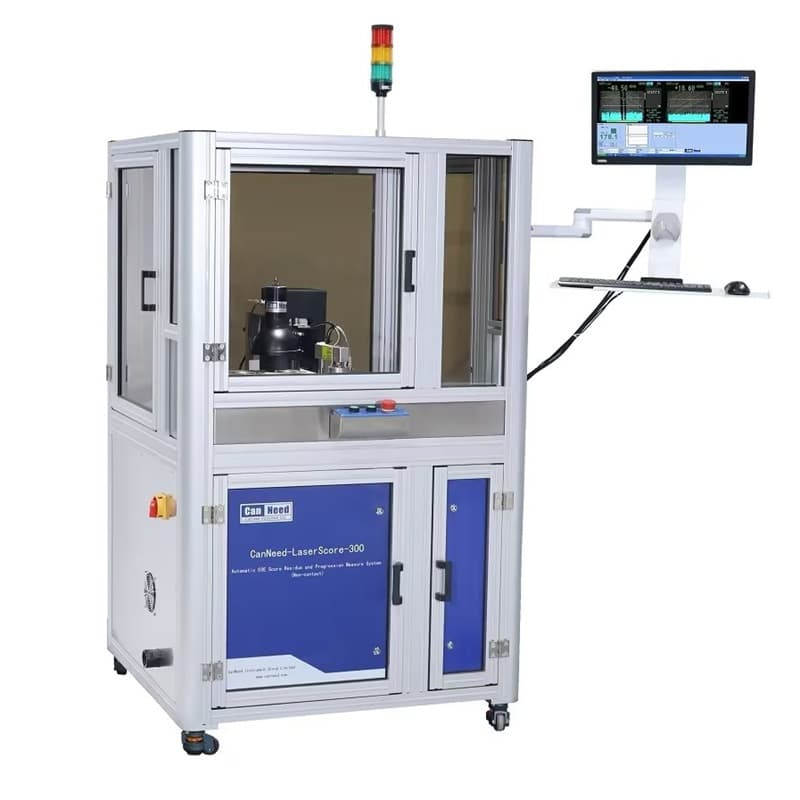

The CanNeed “LaserScore-300 Automatic EOE Score Residue and Progression Measurement System” utilizes advanced laser and visual positioning technology to automate the inspection of Easy Open End (EOE) score residue and rivet convex progression. Designed for high-volume quality control in food and beverage packaging, the LaserScore-300 features two independent work positions, each compatible with 202, 206, and 209 EOE sizes.
The system streamlines batch testing through an integrated automatic sampling mechanical arm. Once samples are stacked, the arm transfers them to the inspection clamp, where a high-precision servo system and visual positioning unit accurately measure multiple points on the EOE. After inspection, the arm automatically returns the sample to the stack, significantly reducing labor costs and testing time.
Advantages
- Fully automated batch measurement process
- Measures end score residue thickness, rivet convex top thickness, and rivet convex bottom thickness
- Rapid sample loading: 2 seconds per cycle
- Efficient testing: Approximately 10 seconds per sample
- High-precision performance: Accuracy superior to 1 µm with 0.1 µm resolution
- Real-time visual display of EOE score cross-sections
- Detailed imaging of both upper and lower EOE score surfaces
- Laser-based measurement eliminates human error and ensures repeatable results
Technical Parameters
- Accuracy: > 1 µm
- Resolution: 0.1 µm
