Automatic Front End and Back End Measure Systems

Applications

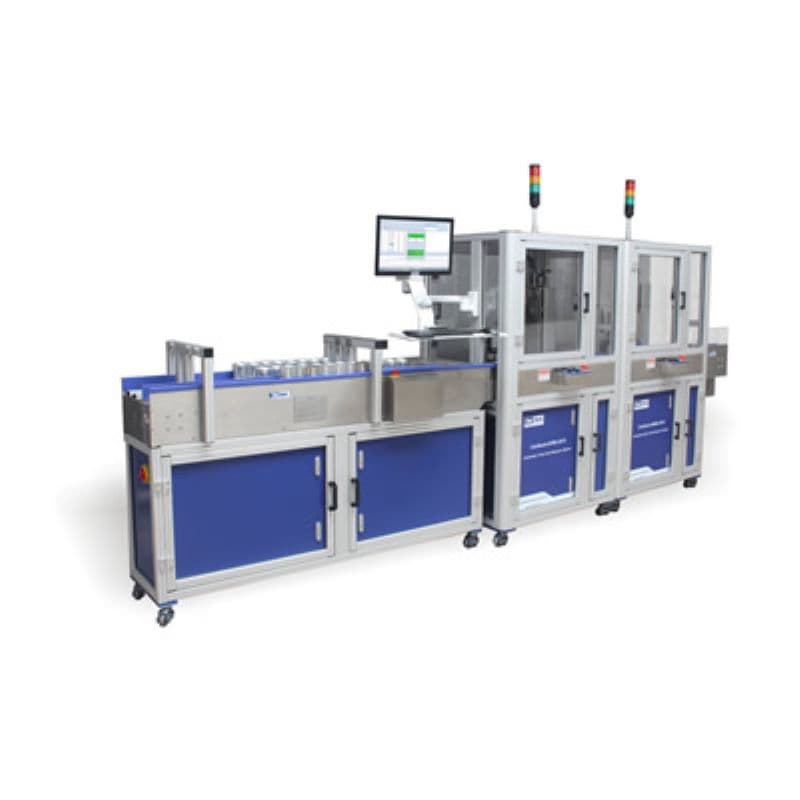

The CanNeed-AFMS-2000 and ABMS-2000 are high-precision automatic can inspection systems designed for unattended, 24/7 quality control in the can-making and food & beverage packaging industries. The AFMS-2000 provides automated measurement of wall thickness, bottom depth, and can height, while the ABMS-2000 specializes in flange width and internal mouth diameter for 2-pc cans. These systems ensure consistent, efficient, and reliable inspection, significantly reducing labor costs and human error in high-volume production lines.

Advantages

● Automatic unattended on-line measurement
● Auto measurement in all process saving time and cost of HR, avoiding personal error
● Up to 50 user defined measuring points
● Multi-channel sampling device, can measure various cans at one time.
● Database management software for easy data query and statistics.
● User defined report format, suitable style and format for enterprise.

Technical Parameter

● Measurable 2-P Can Dia: 202, 204, 211; volume: 250ml, 330ml, 500ml
● Power：220V/50Hz
● Air pressure: over 4bar
● Appearance: Aluminum structure
● Dimensions: 4300mm X 800mm X 1800mm(L x W x H)
