Automatic Front End Measurement System

Applications

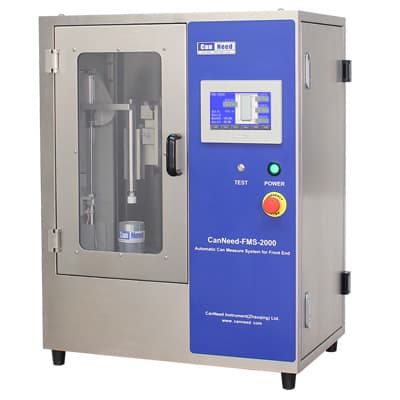

The CanNeed-FMS-2000 Automatic Front End Measurement System is a high-precision solution for measuring bottom depth, can height, and wall thickness (top and midwall) of 2-piece cans. Engineered for rigorous quality control in food and beverage production, the system utilizes a standard calibration gauge, high-accuracy imported micrometers, and intuitive touch-screen PLC control. Its versatile design accommodates various can sizes without the need for time-consuming clamp changes.

Testing Process:

-Samples rotate automatically upon initiation.
-Three pneumatic sensors perform measurements simultaneously, with up to 50 sample points per rotation.
-Automated measurement of bottom depth, can height, and wall thickness.
-Measurement data is exported seamlessly via RS232 interface for SPC integration.

Advantages

• Efficiency: Automated measurement reduces cycle time and eliminates human error.
• Versatility: Accommodates multiple diameters and heights without manual clamp adjustments.
• Precision: High-accuracy sensors ensure superior repeatability and reproducibility (R&R).
• Accuracy: Vertical measurement orientation prevents errors associated with traditional reverse-tank methods.
• Durability: Features a hard-alloy measuring head and world-class industrial components.
• Safety: Equipped with a protective door and safety interlock to prevent operator injury.
• Connectivity: Direct data output to PC or SPC systems via RS232 for streamlined quality reporting.

Technical Parameters

• Sample Type: 2-piece cans
• Diameter Range: 202 (50 mm) to 211 (57 mm)
• Height Range: 88 mm to 190 mm
• Inspection Items: Bottom depth, can height, wall thickness
• Resolution: 0.01 mm (Depth/Height); 0.001 mm (Thickness)
• Air Supply: 6 bar
• Data Output: RS232C
• Power Supply: 220V/50Hz
• Dimensions: 720 x 570 x 900 mm
• Weight: 75 kg
