Automatic Front End Measure System

Applications

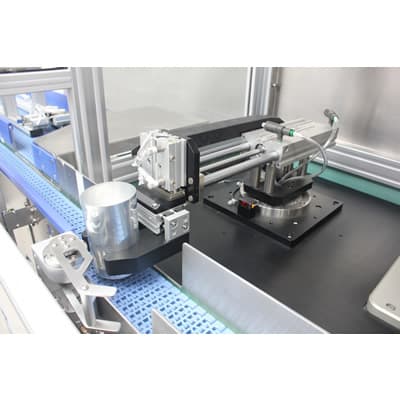

The CanNeed-AFMS-2000 is an Automatic Front End Measure System designed for unattended, high-precision inspection in the can-making industry. This system automates the measurement of wall thickness (upper and middle), bottom depth, and total can height, providing a standardized solution for efficient quality control. The AFMS-2000 features an integrated auto-sampling device, a precision mechanical centering mechanism, and automated data logging to SPC systems.

Advantages

• High-Speed Inspection: Rapidly measures wall thickness, bottom depth, and can height to reduce labor costs and eliminate operator error.
• Versatile Sampling: Multi-channel device allows for simultaneous testing of various can types with quick-change clamps.
• Advanced Vision: Integrated visual system identifies can bottom mode numbers automatically.
• Precision Engineering: Equipped with high-accuracy sensors and durable hard-alloy measuring heads for repeatable results.
• Data Integration: Seamless export to SPC systems and Excel, with customizable reporting and database management.
• Remote Support: HD camera integration allows for convenient remote diagnostics and maintenance.

Technical Parameter

1) Wall thickness resolution: 0.001mm; Bottom depth/Can height resolution: 0.01mm
2) Measurable 2-P Can Dia: 202, 204, 211; Volume: 250ml, 330ml, 500ml
3) Power: 220V/50Hz
4) Air pressure: >4bar
5) Construction: Aluminum structure
6) Dimensions: L3158 x W1000 x H1900mm
