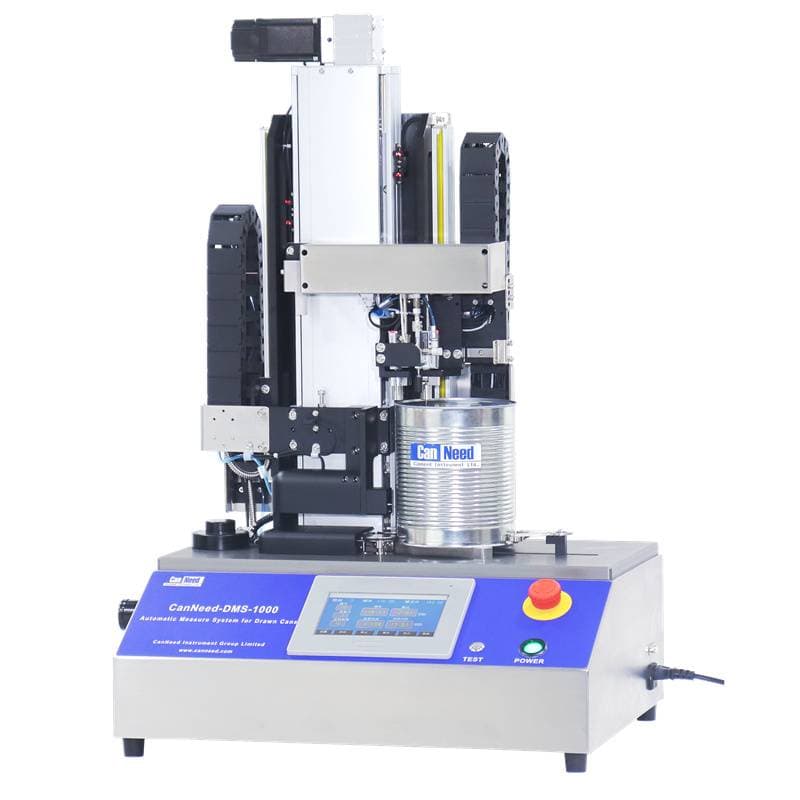

CanNeed-DMS-1000
Automatic Measurement System for Drawn Cans
Better than AT2E's DSMM-1
Automatic measurement system for drawn cans — measures flange width, height, bead depth and spacing across diameters 50–153 mm with zero fixture changes.
Request a quote
Technical specifications
| Detection Object | Three-piece can/spray can/coating, Two-piece can/aluminum bottle |
| Test Items | Dimensions |
| Testing Occasions | laboratory |
Purpose:
The CanNeed-DMS-1000 Automatic Measurement System for Drawn Cans is a precision instrument designed for the food & beverage packaging industry. It accurately measures flange width, can height, bead depth, and bead space distance for both drawn cans and three-piece cans with sealed bottom lids, requiring no fixture changes.
Benefits:
- Simple, reliable mechanical structure for reduced maintenance requirements;
- Fully automatic rotation and measurement to eliminate human error;
- Supports measurement of up to 12 positions with integrated data logging;
- Optional profile measurement for bead, height, and flange parameters.
Technical Parameters:
- Body Can Diameter: 50mm – 153mm
- Can Height: Up to 250mm (3-pc finished cans)
- Dimensions: 700mm x 450mm x 950mm
- Weight: 55kg
- Power Supply: 220VAC / 50Hz
- Air Supply: 5 – 8 Bar
