CanNeed-CMS-1000
Automatic Measurement System for Food Cans
AT2E doesn't have a similar equipment
Automatic measurement system for 3-pc food cans — measures flange width, height, bead depth at up to 36 positions with ±0.02 mm accuracy, eliminating human error.
Request a quote
Technical specifications
| Detection Object | Three-piece can/spray can/coating |
| Test Items | Dimensions |
| Testing Occasions | laboratory |

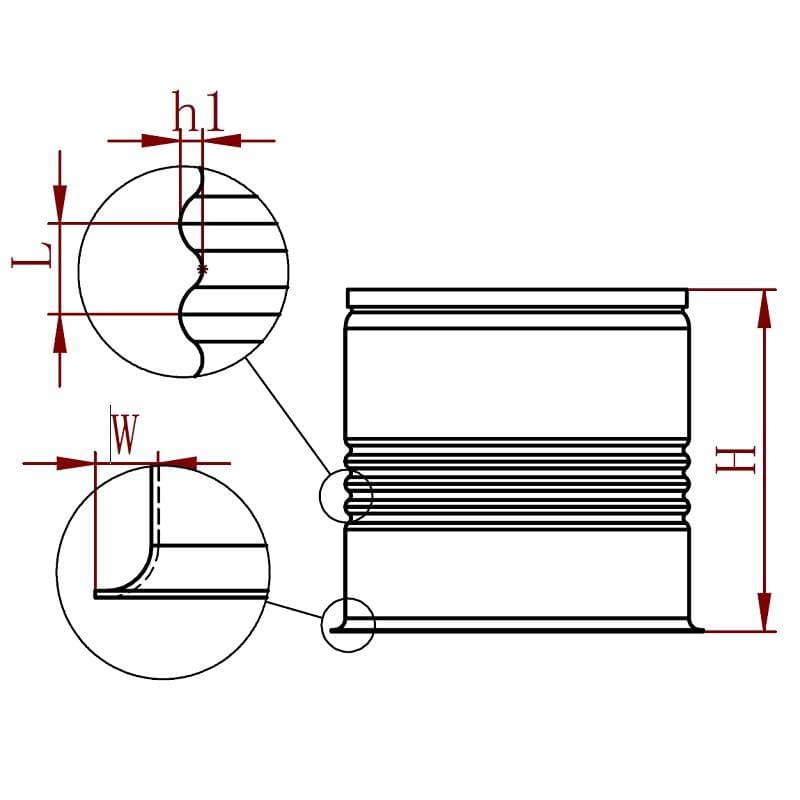

The CanNeed-CMS-1000 Automatic Measurement System is a high-precision solution designed for food & beverage quality control, specifically for measuring flange width, can height, bead depth, and bead space distance on 3-piece cans.
Applications
Engineered for high-speed production environments, the CMS-1000 provides automated inspection of 3-pc cans, ensuring consistent measurement of critical dimensions including flange width, can height, and bead profiles.
Advantages
- Fully Automated: Features automatic rotation and measurement, eliminating human error and increasing throughput.
- High Capacity: Capable of measuring cans in up to 36 distinct positions.
- Data Integrity: Integrated digital data saving capabilities for traceability.
- Robust Design: Simplified mechanical structure compared to manual gauges, offering superior reliability and speed.
- Flexible Analysis: Optional software available for advanced profile measurement of bead, height, and flange combinations.
Technical Parameters
- Accuracy: ±0.02mm
- Resolution: 0.01mm
- Sample Sizes: Can height 25–250mm; Diameter ∅50–∅153mm
- Air Supply: 5–8 Bar
- Power Supply: 220VAC/50Hz
- Dimensions: 700 x 450 x 950mm
- Weight: 55kg
- Operating Environment: 0–45°C
