Automatic Profile Gauge
Automatic profile gauge for PET and glass bottles — non-contact optical measurement of height, diameter, and wall thickness to ±0.003 mm in one click.
Automatic Profile Gauge for PET and Glass Containers

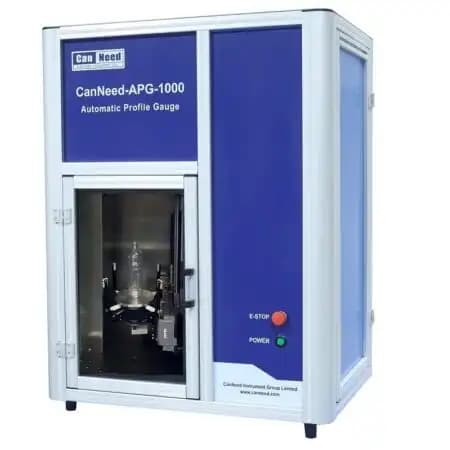

The CanNeed-APG-1000 Automatic Profile Gauge is a high-precision, non-contact measurement system designed for the food & beverage and packaging industries. This one-click device automatically measures the external dimensions and wall thickness of PET bottles, glass containers, and other transparent or opaque packaging.
Key Measurement Capabilities
The APG-1000 provides comprehensive quality data, including:
- Dimensions: Total height, sectional height, and maximum/minimum diameters.
- Thickness: Maximum, minimum, and average wall thickness (accuracy better than 0.003mm).
Technical Specifications
- Measurement Range: Height 70-380mm; Diameter 40-160mm; Thickness <10mm.
- Technology: Backlight machine vision for external dimensions and spectral confocal technology for thickness.
- Efficiency: One-click automated routines reduce labor and eliminate human measurement variation.
- Data Management: Real-time display with automatic database logging, exportable to .xls for full traceability.
- Physical Specs: 930×750×1200 mm, 150 kg, AC 220V 50Hz.
Product Advantages
Designed for production environments, the APG-1000 features a robust aluminum profile chassis and an integrated protective door. Its dedicated PC software ensures simple operation, while non-contact measurement preserves sample integrity, providing rapid, reliable feedback for quality management systems.
