CanNeed-SeamSight®-VSM-6C
Automatic Seam Monitor
Automatic seam monitor measuring 12 seam parameters at 0.001 mm resolution, 60X optics, SPC-ready with Excel export — no sample retention needed.
Request a quotation
Technical specifications
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | laboratory |
Applications

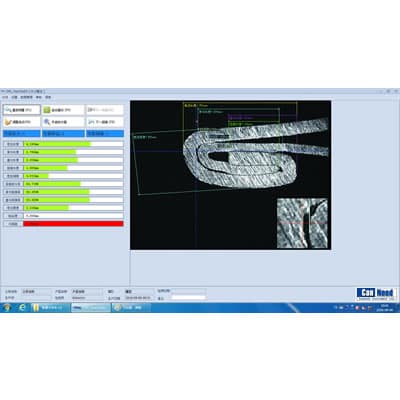

The SeamSight-VSM-6C Automatic Seam Monitor is a high-precision measuring system designed for rapid, automated seam inspection in food and beverage packaging lines. Featuring an advanced optical system and the proprietary Golden Lens™ video capture device, the VSM-6C ensures superior image definition and measurement accuracy. Integrated with CanNeed-CND_VSM3.0 professional software and SPC data collection, the system automatically transfers critical metrics—such as actual seam thickness and countersink—directly to your quality control database.
Advantages
- High-definition imaging via Golden Lens™ technology.
- SPC compatibility: Seamless data integration with Mitutoyo Digital Indicators for seam thickness and countersink.
- Precision performance: 0.001mm resolution and 0.005mm accuracy with 60X magnification.
- Enhanced line positioning: 180X magnification option for critical measurement accuracy.
- Ergonomic design: Compatible with Anti-noise Seam Saws to protect operator hearing.
- Flexible reporting: Fully customizable report formats to meet specific corporate quality standards.
- Comprehensive analysis: Measures 12 critical parameters, including Seam Length, Body Hook Length, Overlap, Seam Gap, and Overlap Rate.
- Database management: Secure storage of measurement results and images for easy retrieval and re-measurement.
- Automated QC: Predefined qualification standards provide real-time pass/fail warnings.
- Data portability: Export results to Excel for trend analysis and graph generation.
- Durable hardware: Monochromatic light source ensures long-term operational reliability.
- Calibration ready: Includes calibration piece for on-demand verification.
Technical Parameter
- Power supply: 220V/110V
- Serial interface: RS 232 C
- Resolution: 0.001mm
- Accuracy: 0.005 mm
- Magnification factor: 60 X
- Line positioning magnification factor: 180 X
- Languages: Chinese/English
- Can diameter: 52–155 mm (customizable up to 300 mm)
