Bottle Cap Impact Tester
Bottle cap impact tester for PET bottles up to 120 mm dia. and 350 mm tall — adjustable holder and catheter positioning ensure repeatable GB/T17876-2010 results.
| Detection Object | Cosmetics/drugs/bagged food, PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Tightness/Leakage |
| Testing Occasions | laboratory |
Applications

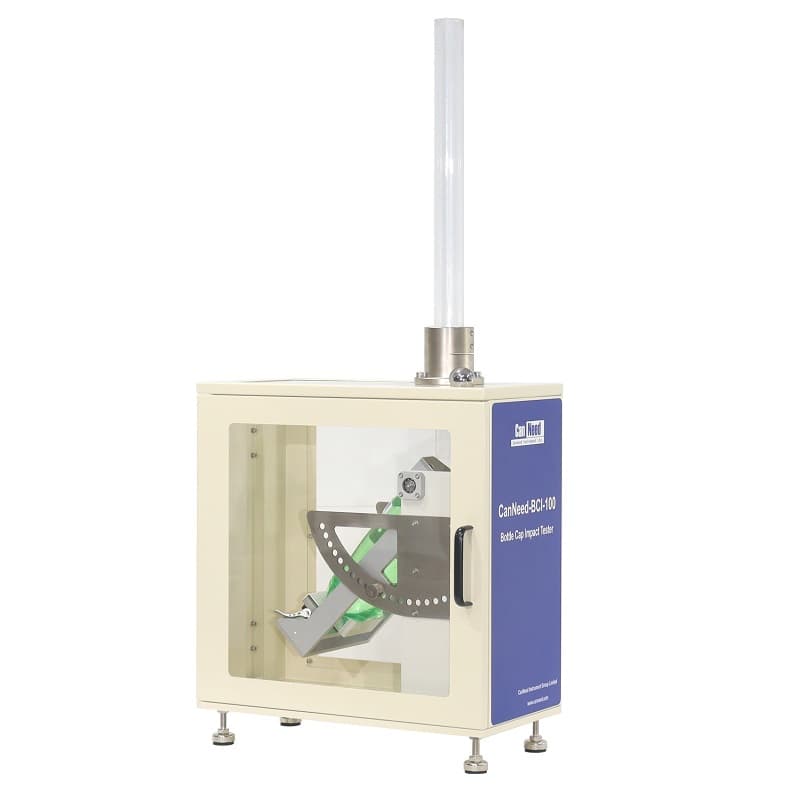

CanNeed-BCI-100 Bottle Cap Impact Tester is used to test the impact resistance of various plastic bottle caps under the impact of steel balls at a certain height.
The application meets to the test requirements of standard GB/T17876-2010 6.4.4.
Advantages
1)Adjustable bottle holder, compatible with bottles of different diameters and heights;
2) Side door type, easier to place or take out bottles, easy to observe the damage;
3) Catheter positioning, can accurately hit the test position;
4) Angle adjustable, high compatibility to different samples;
5) Sealed design to avoid steel ball falling out;
6) Metal chassis, high durability;
7) Insert fixed probe, safe and reliable, prevent side tilt from affecting test results
Technical Parameter
- Measure range: PET bottle with cap, bottle diameter 0-120mm，bottle height 0-350mm，bigger size for customized ordering.
- Place sample mode: Individual station, manual placing samples.
- Power supply: 220V/50Hz.
- Tester size: L600*W300* H1300.
- Weight：45KG.
- Chassis Material: Carbon steel painting Q235.
- Environmental requirement: For indoor use, RH(relative air humidity) ≤ 85%，Temperature：0℃-40℃.
