Buckle Tester for Can and End
Buckle tester for cans and ends, 0–900 kPa range with 4 test modes and RS232C output — precise buckle-pressure data for food & beverage QC lines.
| Detection Object | Canned beer/canned beverages/canned food |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |

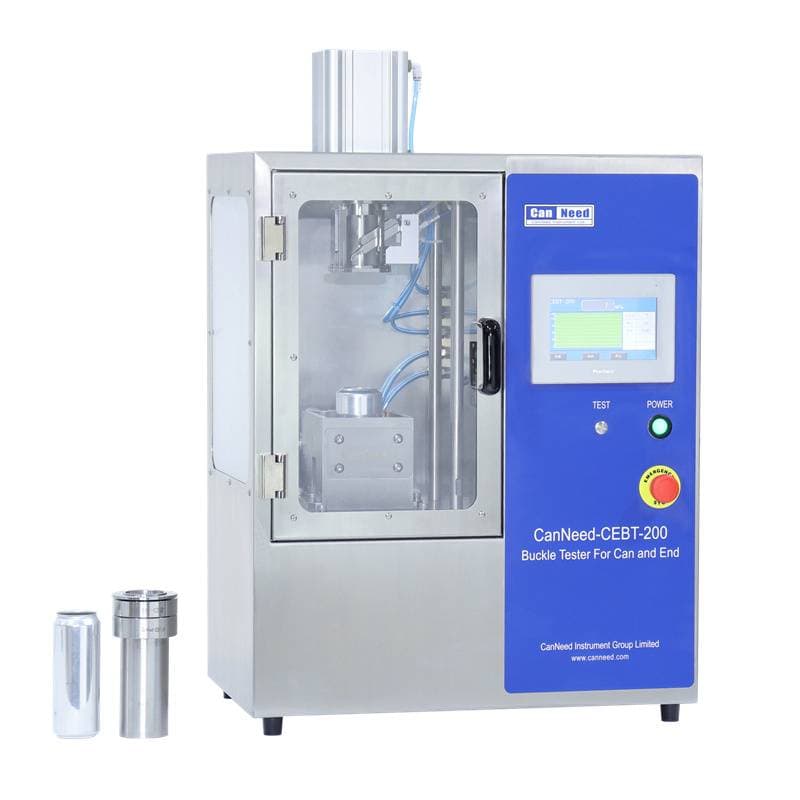

The Canneed-CEBT-200 Buckle Tester for Can and End is a precision instrument designed to determine the exact pressure at which a can or end begins to buckle. Watch the CEBT-200 operation video here.
Applications
This tester features four distinct measuring modes: Buckle Bottom for Can, Missile Test, Peak Test for Free End, and Peak Test for Seamed End. Users place samples into the holding clamp and initiate the test; the device applies a rapid pressure increase to a pre-set value, followed by a controlled pressing speed. The test terminates automatically upon buckling, with the maximum pressure value captured on the display. Interchangeable inserts allow for testing various can and end dimensions within seconds.
Advantages
- Industry-standard testing performance
- RS232C data output for seamless integration with SPC systems
- Intuitive touch-screen PLC controlled interface
- Adjustable pressing speed and customizable pressure curves
- Built-in pneumatic pressure-increasing valve for multi-level pressure testing
- High-precision measurement with dedicated calibration test points
- Integrated safety features including mechanical overload protection
Technical Parameter
- Measure range: 0–900 KPa (0.9 Mpa)
- Resolution: 1 KPa
- Interface: RS232C
- Power supply: 230V/50Hz
- Pneumatic supply: 0.5 Mpa
- Dimensions: 770 x 500 x 1100 mm (W x D x H)
