Instrument manufactured by:

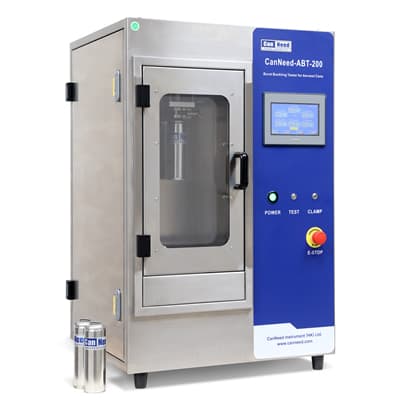

CanNeed-ABT-200
Burst Buckling Tester for aerosol cans
Aerosol can burst & buckling tester, 0–6 MPa range, 0.01 MPa resolution — PLC-controlled with auto test cycle and integrated pressure-curve database.
Request a quotation
Technical specifications
| Detection Object | Cosmetics/drugs/bagged food, Three-piece can/spray can/coating |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |
Applications
The CanNeed-ABT-200 Burst Buckling Tester for aerosol cans provides precise performance assessment for aerosol can manufacturers, ensuring both cost-efficiency and strict quality control. This automated system is designed to accurately measure the buckle value of the bottom and end (dome) of aerosol cans, as well as the critical pressure at which the can bursts.
Advantages
- PLC-controlled operation with a specialized clamping system, allowing for independent testing of free ends (dome) or bottoms of aerosol cans.
- Professional analysis software provides real-time pressure curve monitoring and records three distinct metrics: end buckle value, bottom buckle value, and burst value. The integrated database system manages results and curves, with fully automated testing cycles that eliminate the need for manual intervention.
Technical Parameters
● Air source pressure: 0.5 MPa● Testing pressure: 0–6 MPa
● Resolution: 0.01 MPa
● Dimensions: 555 x 400 x 860 mm (L x W x H)
● Weight: 50 kg
● Sample type: All standard aerosol can types
