The CanNeed-CTG-310 Coating Thickness Gauge measures lacquer weight from 0-99.99 g/m2 on sheets and cans, reducing material consumption through precise RS232-enabled digital monitoring.
| Test Items | Paint film/paint/coating |
| Detection Object | End/crown cap/tab cap/screw cap/claw opening cap, Three-piece can/spray can/coating, Two-piece can/aluminum bottle |
| Testing Occasions | laboratory |

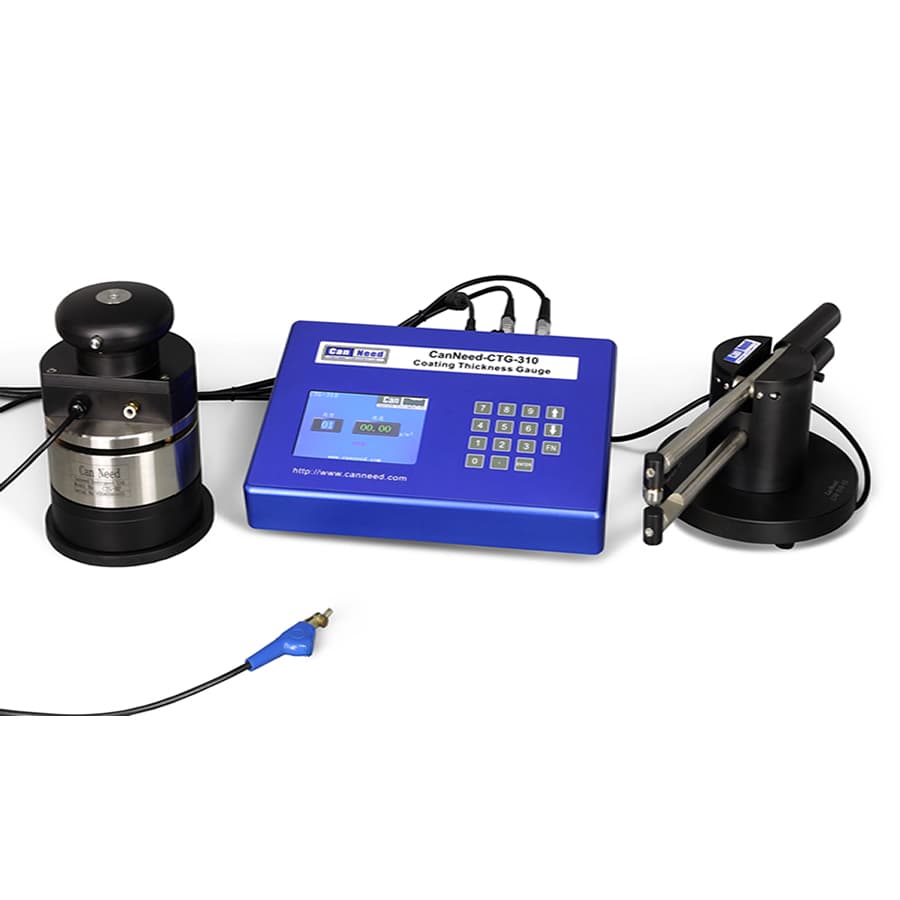

The CanNeed-CTG-310 Coating Thickness Gauge is designed for the food and beverage packaging industry to test coating thickness (coating weight per unit area, g/m2). When equipped with the “Hover Probe,” it measures the coating thickness of plate sheets; when equipped with the can body testing clamp, it tests the coating thickness of the can body.
Using a standard coating plate (sample with known weight, g/m2) for calibration, the unit tests various coating types. Test results and coating type numbers are displayed on the screen, with data output to a PC via RS232.
Reduced lacquer consumption – With its exact calibration system, film weight data is precise, leading to improved control and lower film weight targets.
Greater product quality – Accurate readings ensure that coating or spray equipment is maintained to required specifications, improving product confidence.
Better operating efficiencies – The Gauge features microprocessor control, digital readouts, and data output to printers and computers, enabling rapid operation and quicker machine setups.
Lower spoilage – Quick operation and production-line portability enable increased test frequencies, allowing problems and trends to be spotted earlier to reduce waste.
Measure range: 0-99.99 g/m2
Resolution: 0.01 g/m2
Output: RS232C
Power supply: 230V/50Hz
Dimensions: Main unit: 320 x 230 x 110 mm
Can holder: 385 x 184 x 132 mm
Hover Probe: φ132 x 180 mm
