Corrugated Cardboard Thickness Tester

Name: Corrugated Cardboard Thickness Tester
Brand: Churchill Instruments
SKU: CanNeed-CCTG-20
Availability: InStock

Corrugated cardboard thickness tester per GB/T 6547 and ISO 3034 — 0.01 mm resolution over 0–20 mm range for QC in carton and packaging production.

Request a quotation

Quantity

Notes for our specialists

Talk to a specialist

Technical specifications

Detection Object	Carton/label paper/plastic film
Test Items	thickness
Testing Occasions	laboratory

Applications

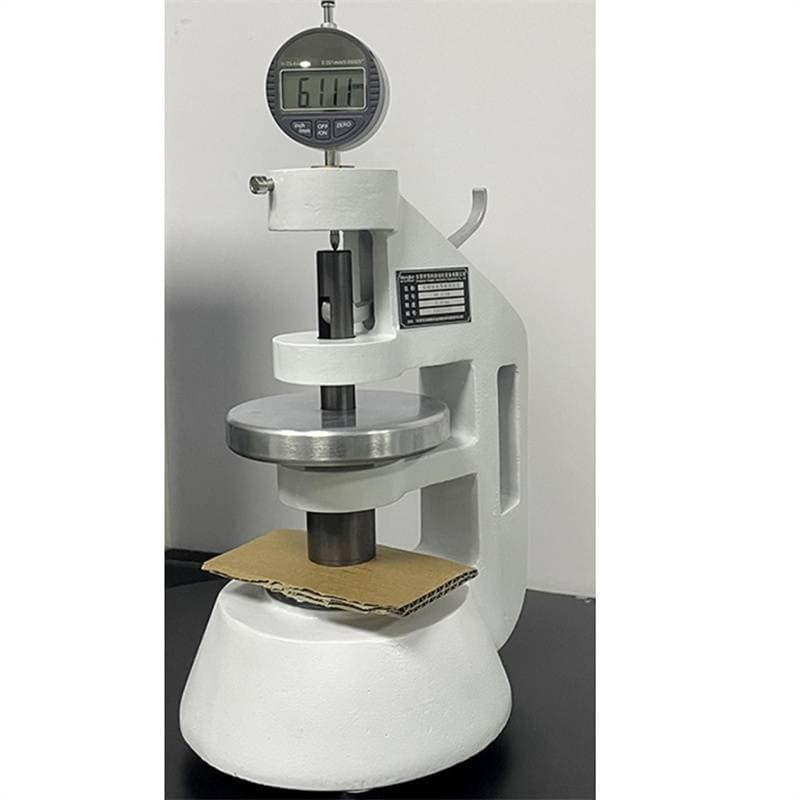

CanNeed-CCTG-20 Corrugated Cardboard Thickness Tester is a mechanical paper and cardboard thickness testing instrument designed and developed by our company according to the national standard GB/T6547, which is mainly applicable to all kinds of corrugated cardboard and is an indispensable measuring instrument for cardboard, carton production, scientific research and commodity inspection and other enterprises and departments.

Test Standards:

The CanNeed-CCTG-20 is designed and manufactured according to the international standards of GB/T 6547、ISO3034.

Advantages:

Light structure, lever mechanism to achieve lifting and reset, easy to operate and use.
Precisionmeasuring head.
Standard meterinterface, easy to replace the meter, convenient daily maintenance.

Technical Parameter:

Resolution 0.01mm Indicator error ±0.05mm Indicating value variability ≤0.05mm Measuring range ≤20mm Contact force (20 ± 0.5) kPa Contact area (10 ± 0.2) cm2 Parallelism ≤ 0.035 mm Lowering speed (2～3)mm/s manual Environmental requirement For indoor use, RH(relative air humidity)＜85%，Temperature: (20 ± 10)°C Dimensions (170 × 140 × 225 )mm (LxWxH)(excluding the header) Net Weight 6.8 kg
