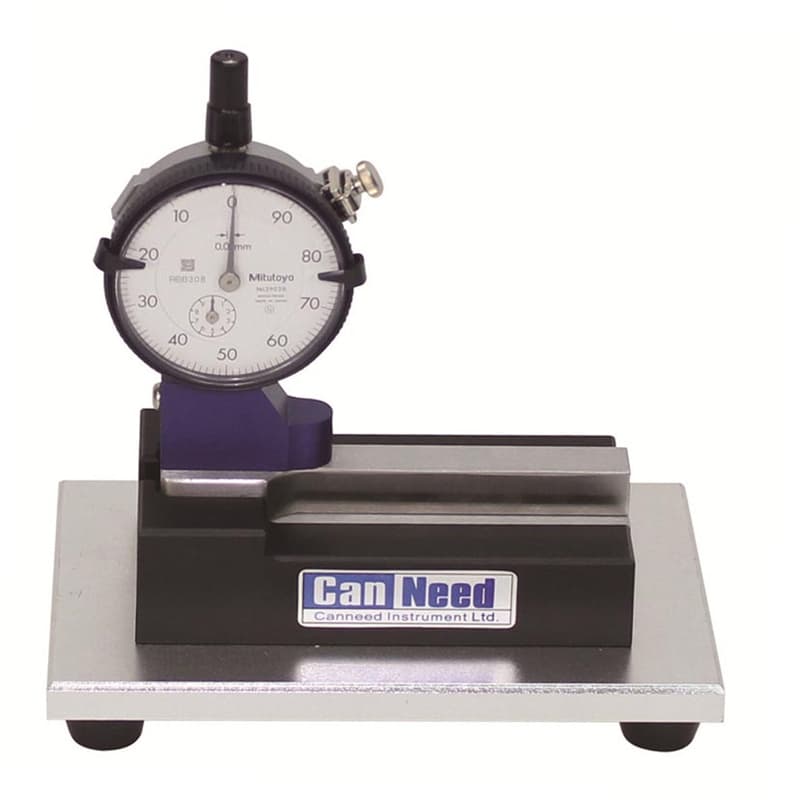

CanNeed-CSG-100
Countersink Gauge (Analog)
Analog countersink gauge measures can bead depth 0–10 mm at 0.01 mm resolution with Mitutoyo indicator — precise seam-quality control for can manufacturing.
Request a quotation
Technical specifications
Applications
The CanNeed-CSG-100 Countersink Gauge is a precision instrument designed for measuring countersink depth parameters, specifically the depth of the beader in food and beverage cans.
The CanNeed-CSG-100 kit includes:
- Countersink Gauge body
- Mitutoyo 0.01mm resolution digital indicator
- Zeroization support
- Protection piece
- Testing needle
Technical Parameters
- Measure range: 0–10mm (custom ranges available upon request)
- Resolution: 0.01mm
- Compatibility: Suitable for 113-307 ends
Optional Accessories
- CSG-CAL 6.35mm calibration plate
- CSG-N635 replacement testing needle
