Crush Resistance Tester

View the CanNeed-CRT-100 Crush Resistance Tester in action

Applications

The CanNeed-CRT-100 Crush Resistance Tester is a precision instrument designed for quality control in the packaging industry. It is used for testing corrugated board and paper, supporting Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Peel Adhesive Test (PAT), as well as Corrugating Medium Test (CMT) & Corrugated Crush Test (CCT) for samples smaller than 60mm. This unit complies with international inspection standards including GB/T 2679.8, GB/T 6546, and GB/T 6548. The CRT-100 features advanced data processing, including automatic conversion, historical data querying, and integrated printing.

Advantages

1. Automatically displays and records the maximal value during testing.
2. Multiple test modes accommodate various sample sizes.
3. Individual test results are stored and accessible for review.
4. Automated calculation of individual test items.
5. PLC touch screen control ensures stable and repeatable testing speeds.

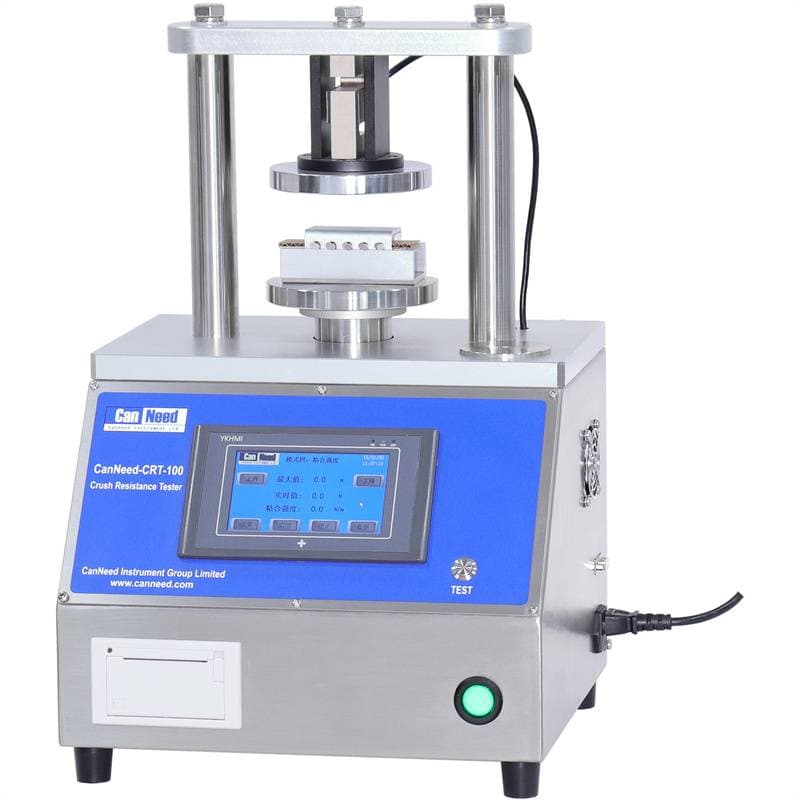

6. Modular integrated thermal printer for fast, reliable documentation.
7. Over-range alarm function protects precision sensors from damage.
8. Wide measuring range suitable for diverse industrial packaging projects.

Technical Parameter

• Measure range: 0~300 KG (custom options available)
• Accuracy: 0.2% Full scale
• Resolution: 0.1N
• Unit: N
• Test cycle: ~30S/test, 1 station
• Test sample: Corrugated board and paper
• Test speed: 12.5 ± 2.5mm/min
• Stroke: 2~75mm
• Tester dimensions: L350 X W330 X H545 mm
• Power input: 220/240VAC @ 50/60 Hz
• Environmental requirement: Indoor use, RH ≤ 85%, Temperature: 5℃-40℃
