Digital AutoShaker Beverage CO₂ Calculator

Applications

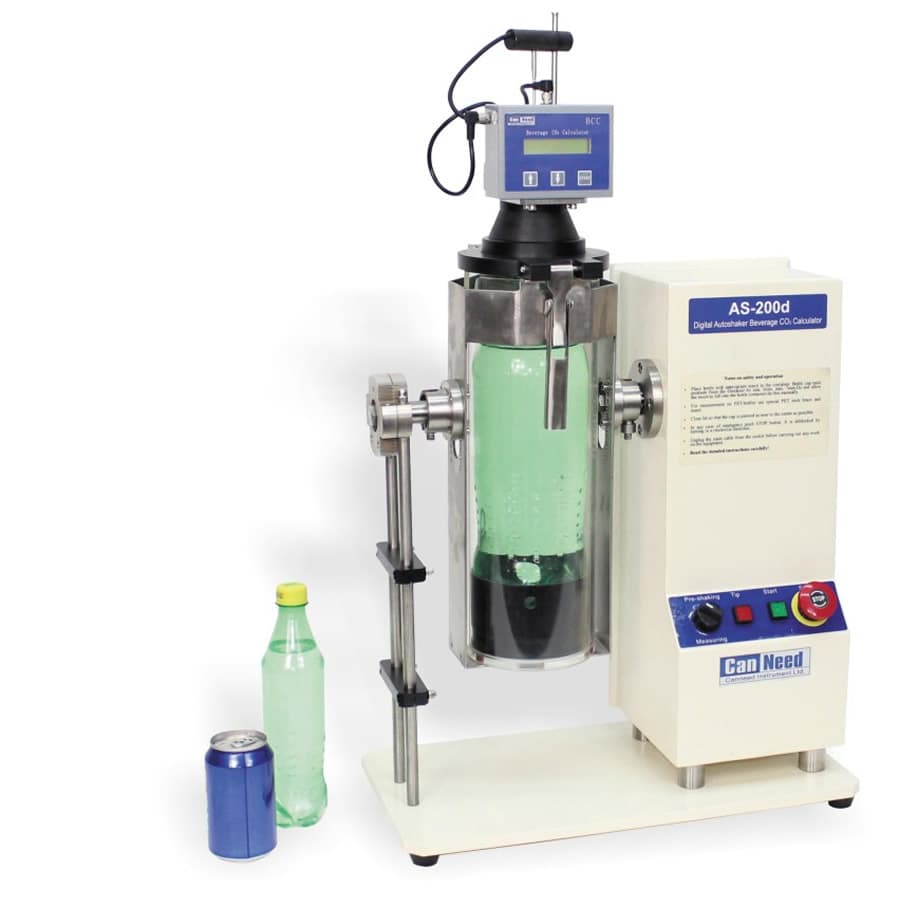

The AS-200d Digital AutoShaker Beverage CO₂ Calculator is a patented, high-precision instrument designed for accurate carbon dioxide measurement in glass, PET bottles, and cans within the food & beverage industry. Its automated shaking process ensures high reproducibility, making it an essential tool for quality assurance and process control.

The operation involves placing the sample in the protection drum, piercing the container, and utilizing motor-driven rotation to achieve phase equilibrium. This controlled process ensures the optimum release of dissolved carbon dioxide, providing reliable and repeatable measurement results based on integrated temperature and pressure charts.

For comprehensive quality control, the AS-200d can be paired with the IAM Air Meter to determine headspace air content and total air content in the beverage.

Advantages

• Motorized rotation eliminates manual shaking for superior reproducibility
• Integrated protection drum enhances operator safety
• Automated CO₂ content calculation for high accuracy
• Simple, intuitive operation and easy calibration
• Versatile design compatible with most standard glass, PET, and metal containers

Technical Parameters

• CO₂ Measuring range: 2.50 – 9.99 g/L (0.25-1.00 gew.%, 1.25-5.00 % V/V)
• Temperature Measuring range: -10 – +60 ℃
• Pressure Measuring range: -1 – +6 bar
• CO₂ Resolution: ±0.10 g/L
• Temperature Resolution: ±0.2℃
• Pressure Resolution: ±0.1 bar
• Max Sample Diameter: 120 mm (custom sizes available)
• Max Sample Height: 360 mm
• Power supply: 230V/50Hz
• Dimensions: 500 x 400 x 700 mm (W x D x H)
• Net Weight: 20 kg
