Instrument manufactured by:

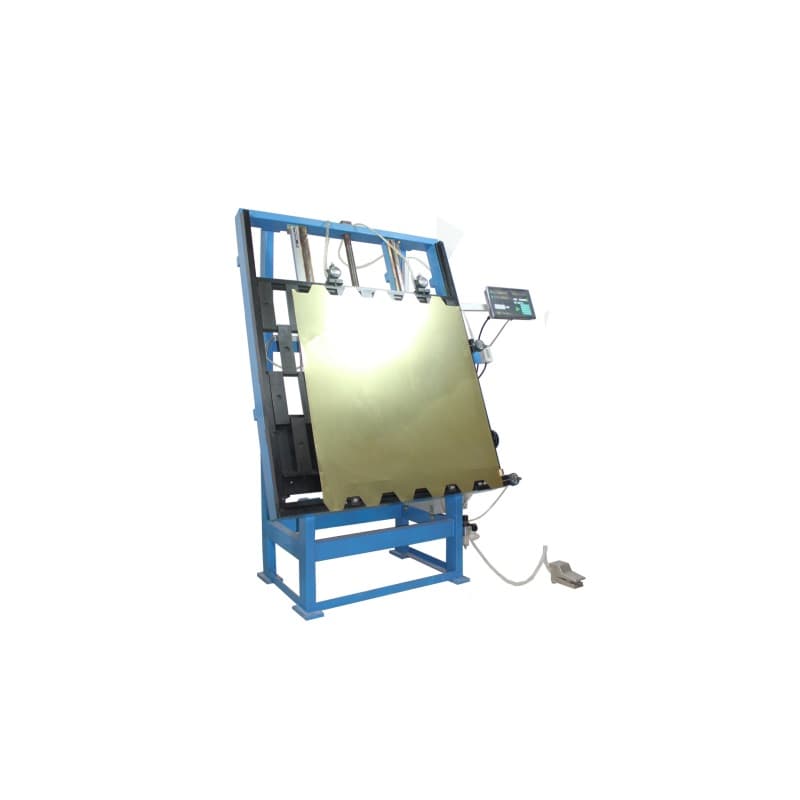

CanNeed-ZME-1220
Digital End Blank Gauge for Scroll Cut
AT2E doesn't have a similar equipment
Digital end blank gauge for scroll cut measuring length, parallelism, and perpendicularity — 500–1220 mm range, 0.02 mm accuracy, repeatable user-independent results.
Request a quote
Technical specifications
| Detection Object | End/crown cap/tab cap/screw cap/claw opening cap |
| Test Items | Dimensions |
| Testing Occasions | laboratory |
Applications
The CanNeed-ZME-1220 Digital End Blank Gauge is a precision instrument designed for the metal packaging industry to measure end blank length, parallelism, perpendicularity, and reference points for scroll cut production.
Advantages
- Simple operation with the help of an incremental ruler/fine measuring gauge combination and digital indicators
- Accurate, repeatable, user-independent results
- Continuously displaying readings
Technical Data
- Measuring range: 500 – 1220 mm
- Resolution: 0.005 mm
- Accuracy: 0.02 mm
- Dimensions (L x W x H): 1300 x 720 x 1800 mm
- Weight: 300 kg
