Instrument manufactured by:

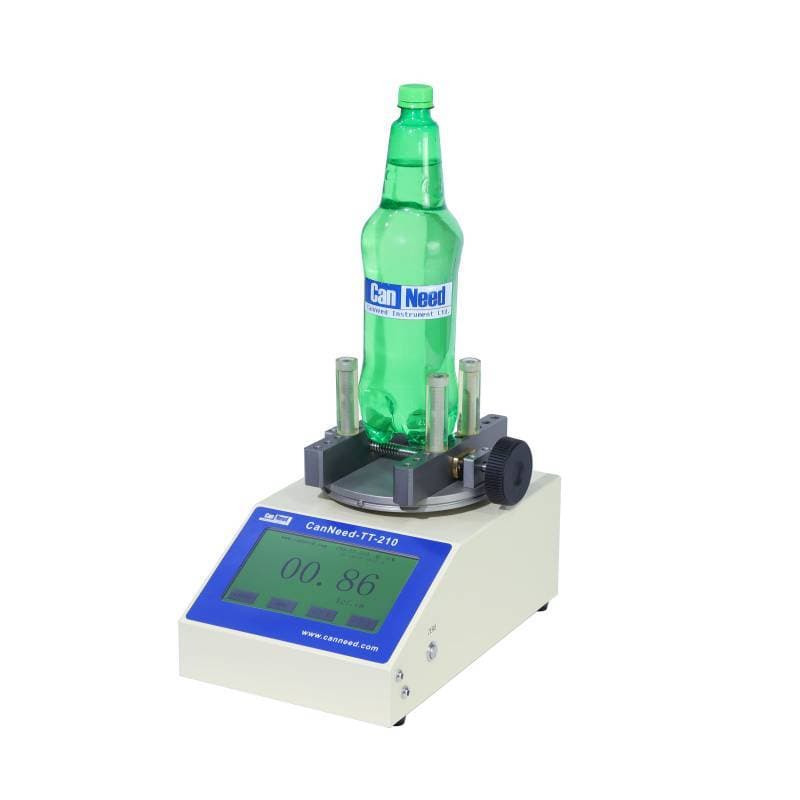

CanNeed-TT-210
Digital Torque Tester
Digital torque tester for bottle cap opening/closing, ±0.5% full-scale accuracy, IP64, RS232 output — ideal for pharma, food, and cosmetic QC lines.
Request a quotation
Technical specifications
Applications
The CanNeed-TT-210 Digital Torque Tester is an industry-standard Digital Torque Tester designed for precision testing of cap opening and closing torque values in the food, cosmetic, pharmaceutical, and chemical industries. Its robust stainless steel construction and IP64 rating ensure reliable performance in demanding production environments.
Key Advantages
- High Precision: Delivers ±0.5% full-scale accuracy with multi-unit support (Kgf.cm, Inch.lbs, daN.cm, N.cm, N.m).
- Advanced Data Management: Features a large touchscreen, 1,000-result memory, and RS232 output for seamless PC integration.
- Versatile Fixturing: Adjustable cassette-type fixture accommodates various bottle shapes and sizes with quick-clamp options.
- Process Control: Includes five programmable threshold levels (T. BAS to T. HAUT) and dynamic bar-graph visualization for real-time quality monitoring.
- Rugged Design: IP64-rated stainless steel housing with a non-rigid rotation shaft to minimize measurement errors from side or top forces.
Technical Specifications
- Measuring Range: 0.00 to 99.00 inch.lbs (High-accuracy mode: 0.000 to 4.500 inch.lbs).
- Operating Modes: Common, Peak Value, and Peak Value + Memo.
- Data Logging: Stores up to 30 product profiles and 1,000 measurement results with timestamping.
- Connectivity: RS232 output and analog output; optional measuring software and mini-printer available.
- Power: Rechargeable lithium battery or 220V/50Hz mains.
- Protection: IP64 rated for dust and water resistance.
