Full automatic seam monitor measures 12 seam dimensions in under 1 second — 0.001 mm resolution, SPC-ready, USB-powered for food and beverage can lines.

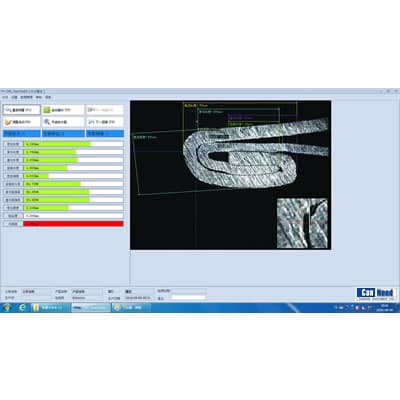

The SeamSight® Full Automatic Seam Monitor is a high-precision inspection system designed for food and beverage packaging quality control. Featuring SeamSight® Professional Software, the system enables fully automated line positioning and completes comprehensive seam measurements in under one second, significantly reducing operator error.
The system integrates seamlessly with the CanNeed SPC data collection system, allowing for the automatic transfer of actual seam thickness and countersink measurements to a centralized database. This database management system provides robust data storage, statistical analysis, and trend charting, ensuring efficient quality oversight and compliance reporting.
1) Full automatic line positioning (Auto measure), measurement finished within 1 second!
2) Equipped with Golden Lens® video capture device which is interference-free of external light sources and ensures high image definition
3) SPC compatible; integrates with Mitutoyo Digital Indicators for precise seam thickness and countersink data
4) USB-powered for streamlined connectivity; no external power supply required
5) Comprehensive analysis including tightness measurement and 5 calculation formulae for Overlap Rate
6) High-precision optics: 0.001mm resolution, 0.005mm accuracy, 60X magnification, and 180X line positioning magnification
7) Customizable reporting formats to meet diverse corporate quality standards
8) 12 Measuring Items: Tightness, Seam Length, Body Hook Length, End Hook Length, Overlap, Seam gap, Overlap rate, Body Hook lapping rate, End Hook lapping rate, On-screen Seam Thickness, Actual Seam Thickness, and Actual countersink
9) Advanced database management: save images and results for re-measurement or historical review
10) Automated qualification standards: system provides real-time alerts for out-of-spec measurements
11) Includes calibration piece for on-demand accuracy verification
12) Durable monochromatic light source for consistent, long-term performance
● Power supply: USB port of PC
● Serial interface: RS 232 C
● Resolution: 0.001mm
● Accuracy: 0.005 mm
● Can diameter: 52-127 mm (customizable up to 200 mm)
● Dimensions: L400 x W200 x H150 mm
