Fully Automatic Seam Scanner (Non-destructive & Automatic sampling)
Better than AT2E's SeamCheck
Non-destructive automatic seam scanner measures 8 double-seam dimensions to ±0.01 mm accuracy — unattended, 360° scanning cuts labor cost on food and beverage can lines.
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | Online/packaging line |
Applications

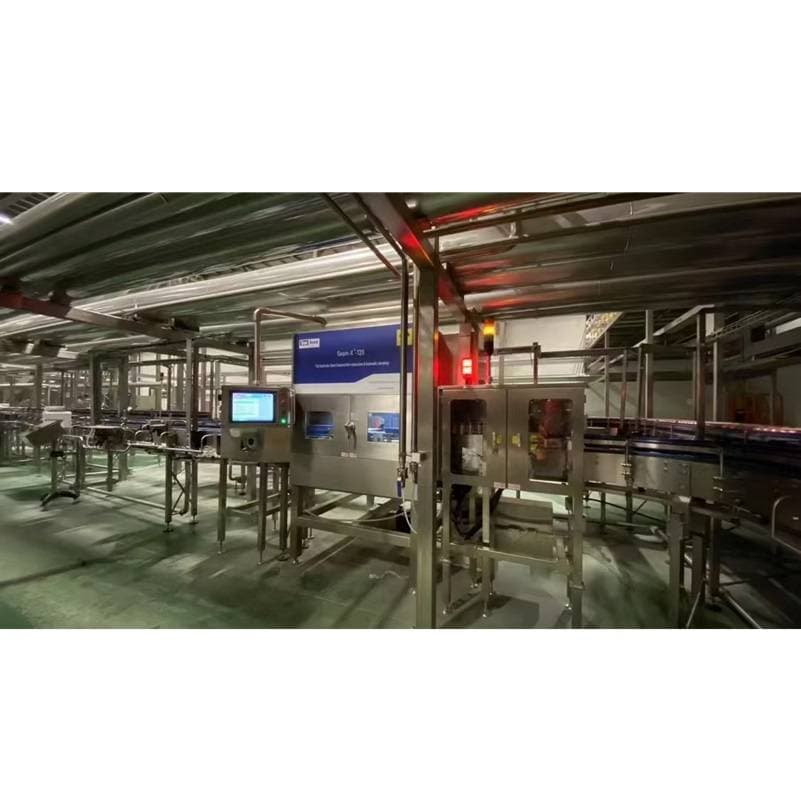

The Seam-X®-On-Line Automatic Seam Scanner provides non-destructive, high-speed measurement of double seam dimensions directly on the production line. Designed for the food & beverage industry, this system automates sampling and analysis for aluminum and tin cans, ensuring consistent quality control without the need for destructive cutting methods.
Measure Items: Seam Length, Body Hook, End Hook, Overlap, %Overlap, Seam Gap, %Body Hook Butting, and %End Hook Butting. The system integrates seamlessly with seam thickness and countersink gauges to form a complete inspection suite, with optional identification sampling to track results by seamer head.
Advantages
- Non-Destructive: Eliminates sample waste and provides safer operation compared to manual cutting.
- High-Speed Automation: Real-time, unattended measurement with automatic pass/fail judgment.
- Precision: High-frequency 360° scanning with ±0.01 mm accuracy and 0.001 mm resolution.
- Safety Certified: Complies with third-party X-ray radiation protection standards (0.08mSV/year).
- Data Integration: Automatic SPC data storage with multiple output formats including Ethernet, SQL, and TXT.
- Versatile: Accommodates various can sizes (Diameter: 50–67mm; Height: ≤168mm).
Technical Parameters
Accuracy: ±0.01 mm (Seam Dimension)
Resolution: 0.001 mm
Output: Ethernet, ASCII, TXT, SQL, DBI
Power: 100-240VAC, 50/60 Hz
Air Supply: 0.4 – 0.6 MPa
Dimensions: 1400 × 1500 × 2000 mm
Weight: Approx. 2000 kg
