Fully Automatic Component Counter

Introduction

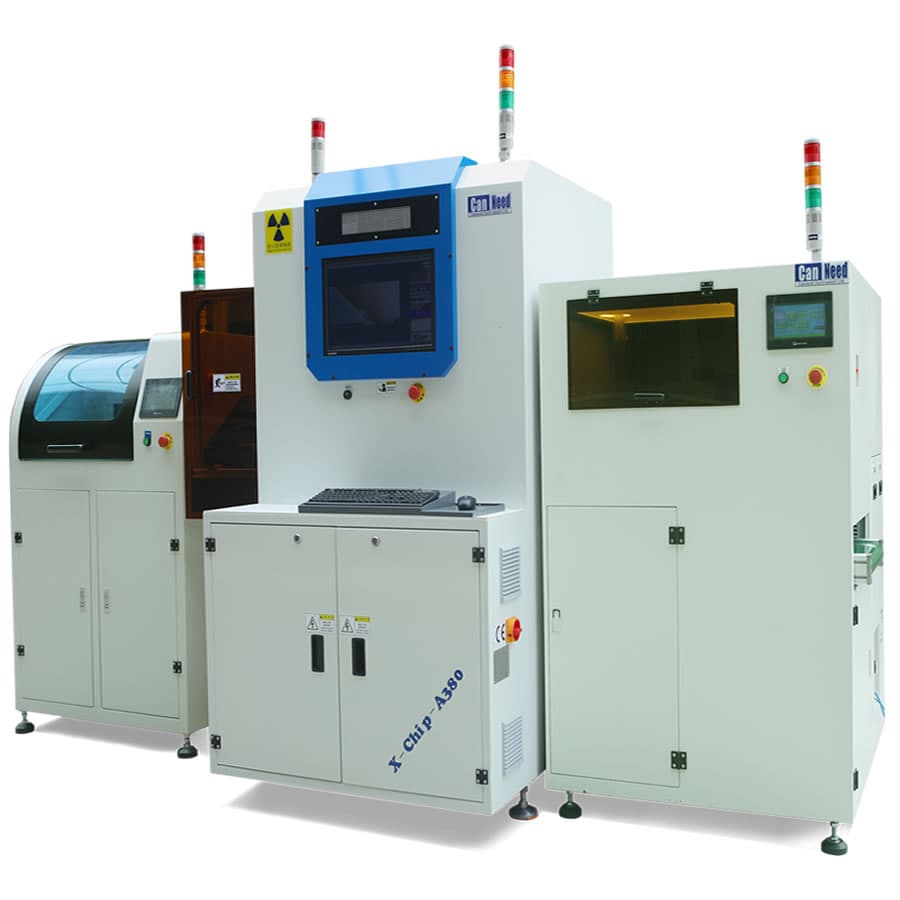

The CanNeed-Chip-A380 is a fully automatic component counter designed for high-efficiency inventory management in electronics manufacturing and PCB assembly. This system supports 7-inch to 15-inch reels and utilizes advanced X-ray imaging to provide unattended, high-speed counting with ≥ 99.7% accuracy. By integrating directly with MES/ERP systems, it automates loading, scanning, labeling, and sorting to streamline warehouse operations.

Main Features

• Dual-Station Design: Two independent stations hold up to 104 reels, allowing for continuous operation and material cart replacement without downtime.
• High Compatibility: Processes mixed 7-inch to 15-inch reels seamlessly.
• Advanced Imaging: Capable of counting components up to 68mm high with distortion-free X-ray imaging.
• Automated Labeling: Vision-guided system for overwriting labels with secondary verification to prevent errors.
• Safety Certified: CE certified with radiation levels < 1 μSv/h, dual safety interlocks, and comprehensive lead shielding.

Technical Parameters

Scanning Size180mm – 380mm Counting Accuracy≥ 99.7% Speed≤ 25 seconds per reel Component SizeMinimum 0201 / 01005 Reel Height8mm – 80mm Power Supply220VAC ±10%, 50/60Hz Dimensions3750mm (L) x 1700mm (W) x 1970mm (H) Weight1710 KG
