Fully Automatic Transmittance Testing Equipment
AT2E doesn't have a similar equipment
Fully automatic IR transmittance tester for 6–12" displays; 750–800 pcs/hr, ±0.05% repeatability, 400–1000 nm range with vision-aligned SCARA robot handling.
| Detection Object | Mobile phone glass cover |
| Test Items | Spectrometer/Transmittance |
| Testing Occasions | Online/packaging line |
Introduction
The TRT-3020 is a fully automatic transmittance testing equipment designed for high-precision measurement of IR holes in display manufacturing. Ideal for electronics and screen production lines, this system automates the inspection of 6-inch to 12-inch displays. The TRT-3020 eliminates manual intervention by handling loading, unloading, testing, and OK/NG sorting, ensuring consistent quality control for high-volume production.
Overall Dimension Diagram

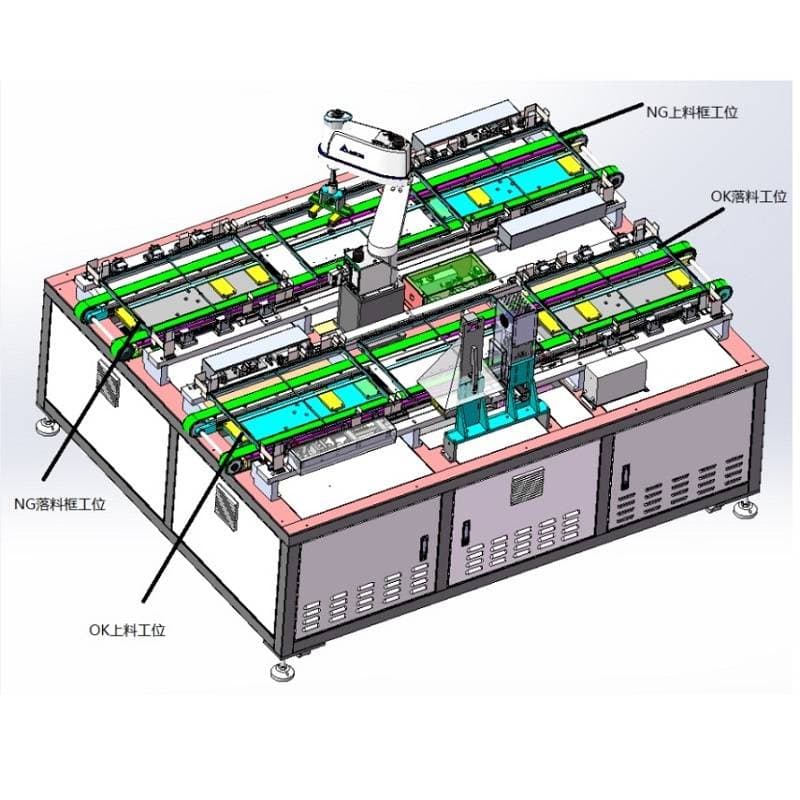

3D Appearance and Dimension Diagrams
Outstanding Performance
- Fully Automatic Loading/Unloading: Dual-stack areas accommodate up to 40 trays each, supporting continuous, unattended operation.
- High Detection Accuracy: Utilizes camera vision alignment for precise positioning and automated NG (No-Good) sample segregation.
- Integrated System: Combines a high-speed detection unit with a 4-axis SCARA robot for seamless motion and inspection.
- Advanced Software: Features flexible wavelength configuration, local database storage, and automated reporting (Excel/PDF) for full traceability.
Parameters and Configuration
ParameterSpecification Detection Speed750-800 pieces/hour Positioning Accuracy0.03 mm Transmittance AccuracyError < 0.3% Wavelength Range400 – 1000 nm Sample Range6 – 12 inch Power Supply220 VAC Dimensions2570 x 1960 x 1937 mmNote: Equipment acceptance and operational standards shall be based on the parameters listed above.
