Hall Effect Thickness Gauge

Applications

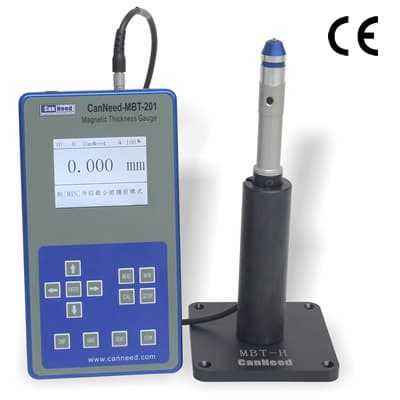

The Canneed-MBT-201 Hall Effect Thickness Gauge is a high-precision, portable thickness gauge designed for non-destructive quality control in food & beverage and pharmaceutical packaging. It accurately measures the wall thickness of non-magnetic materials including plastic, glass, aluminum, and titanium, regardless of complex sample geometry.

Utilizing advanced Hall Effect technology, the MBT-201 measures the distance between a steel ball and the probe tip to provide instantaneous, real-time thickness readings.

Advantages

1. Non-destructive testing: Ideal for spot-checking corners, small radii, and complex shapes without damaging samples.
2. Real-time monitoring: Automatically captures minimum thickness readings during rapid measurement cycles (up to 16 readings per second).
3. Industry standard: A trusted solution for quality assurance in plastic and metal packaging production lines.
4. High precision: Accuracy of ±1% with internal storage for up to 95,000 data points.

Technical Parameter

● Resolution: 0.01 mm or 0.001 mm (0.001″ or 0.0001″)
● Data Output: RS-232 serial port
● Power: 100/120/220/240 VAC, 48-62 Hz
● Units: Selectable Metric/Imperial (mm/inch)
● Working Temperature: 0 – +50℃
● Dimensions: 9.375 x 5.45 x 1.5″ (238 x 138 x 38mm)
