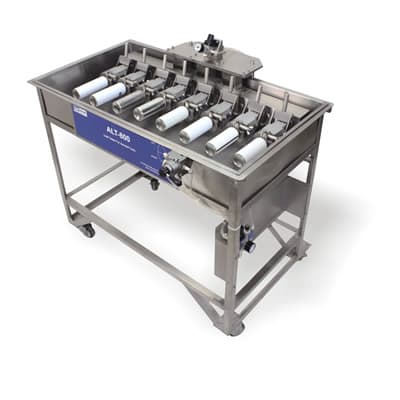

Leak Tester for Aerosol can

Applications

The Canneed-ALT-600/ALT-800 Leak Tester for Aerosol can is a high-precision solution designed for quality control in food & beverage and chemical packaging lines. The ALT-600 tests 6 cans simultaneously, while the ALT-800 supports 8, ensuring efficient throughput. This permeability tester pressurizes cans up to 10 bar (1.0 Mpa) and submerges them in a water flume, allowing operators to visually identify leaks through air-bubble detection.

Advantages

1. Cans are freely suspended in the water, eliminating the need for extra clamping force
2. Simple clamping device allows for rapid loading and unloading in under 1 second
3. Clamping mechanism is independent of can diameter for versatile production use
4. Pneumatic handle controls allow for effortless dipping and lifting of samples
5. Clear visibility of end and side seams for thorough inspection
6. Integrated rotation feature allows for 360-degree inspection while pressurized

Technical Parameters

• Air source pressure: 1.0 Mpa
• Max. testing pressure: 1.0 Mpa
• Resolution: 0.05 Mpa
• Sample type: Aerosol Cans
• Flume size: 1200 x 590 x 800 mm
• Dimensions: 1200 x 650 x 800 mm
• Can diameter: 25.4 mm (compatible with 15.0 mm)
