Instrument manufactured by:
CanNeed-DSN-100
Nosing Depth Gauge
AT2E doesn't have a similar equipment
Nosing depth gauge for aluminum bottle can caps, 0–3.5 mm range, 0.01 mm resolution, ±0.02 mm accuracy — ensures consistent closure fit.
Request a quote
Technical specifications
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Dimensions, thickness |
| Testing Occasions | laboratory |
Applications

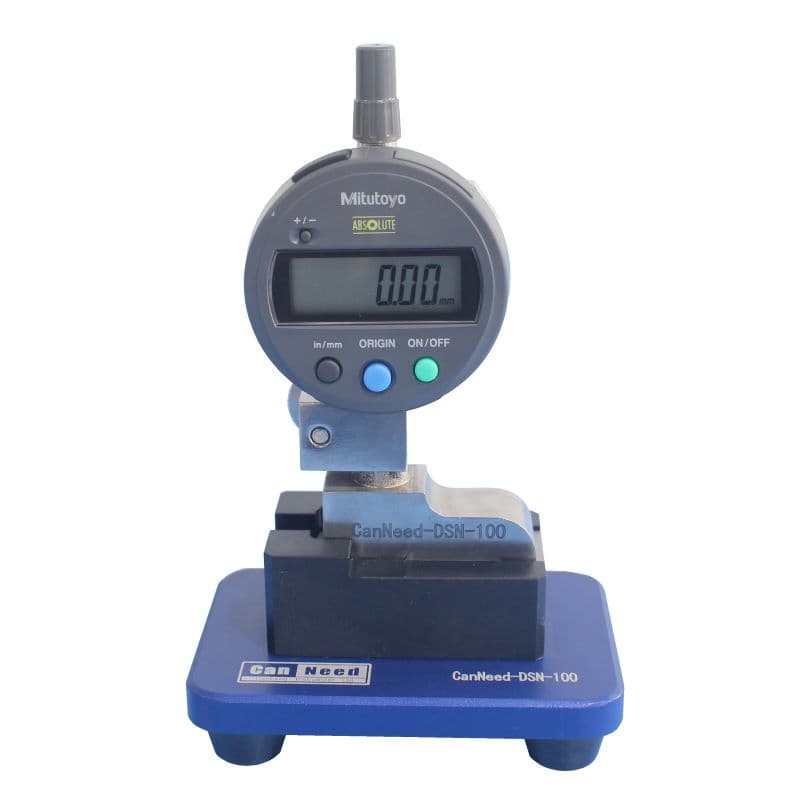

CanNeed-DSN-100 Nosing Depth Gauge is used to measure the nosing depth on the caps of aluminum bottle cans, which can make the bottle can closure fit better with the caps.
The gauge assembles with a digital Mitutoyo meter and a calibration platform.
Technical Parameters
Measure range
0–3.5mm (Other ranges are available)
Resolution
0.01mm
Accuracy
±0.02mm
