Paper Board Bursting Strength Tester
Paper board bursting strength tester, 350–5500 kPa range, 0.5% accuracy, motor-driven linear pressure — RS232 output for SPC integration.
| Detection Object | Carton/label paper/plastic film |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |
The CanNeed-PBT-100 Paper Board Bursting Strength Tester is a precision instrument designed for testing and analyzing the bursting strength of cardboard, corrugated board, and various paper materials. Ideal for quality control in packaging and paper manufacturing, this tester supports a burst resistance range of 350Kpa to 5500Kpa and complies with the GBT1539-2007 international standard for cardboard breaking resistance determination.
Watch the PBT-100 operation video
Applications
This unit is engineered for high-accuracy testing of paperboard, including corrugated and solid fiberboard, ensuring consistent results for industrial production lines and laboratory environments.
Test process:
Secure the sample board on the circular film, ensuring a flat surface. The system pumps hydraulic fluid at a constant, motor-driven speed to expand the film until the sample reaches its breaking point, automatically capturing the maximum pressure value.
Advantages
- High-precision motor drive ensures a stable, linear pressure curve.
- Individual oil-filling column for rapid air exhaustion and maintenance.

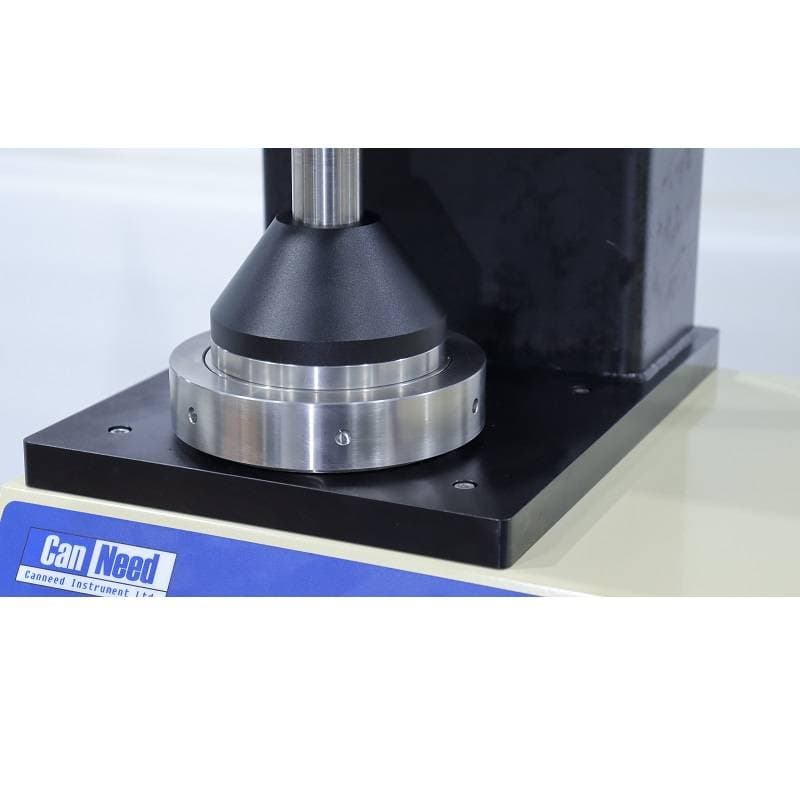

- Large-diameter clamping cylinder prevents sample slippage for accurate results.
- Integrated micro-printer for immediate documentation of test data.
- RS232 COM interface for seamless data export to SPC systems.
Technical Parameter
- Measure range: 350-5500Kpa
- Accuracy: 0.5% (max range up to 6000Kpa)
- Resolution: 1Kpa
- Unit: Kpa
- Weight: 80KG
- Tester dimensions: L600 x W600 x H900mm
- Power input: 220/240VAC @ 50/60 Hz
- Environmental requirement: Indoor use, RH ≤ 85%, Temperature: 0℃-40℃
