CanNeed-PWTG-1000

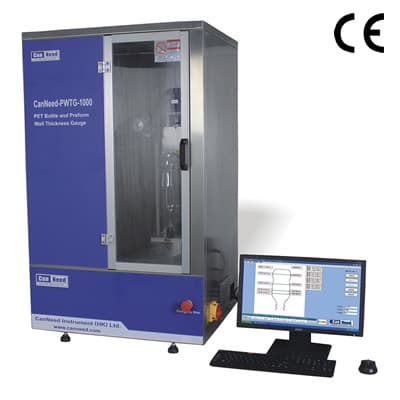

PET Bottle and Preform Wall Thickness Gauge
PET bottle and preform wall thickness gauge measuring 0–2 mm at ±0.02 mm accuracy — non-contact, auto-rotation captures 500 points per level for fast QC on filling lines.
Request a quotation
Technical specifications
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | thickness |
| Testing Occasions | laboratory |
Applications
The CanNeed-PWTG-1000 PET Bottle and Preform Wall Thickness Gauge provides precise measurement of wall thickness and external dimensions for plastic containers. Essential for food and beverage packaging quality control, this gauge ensures optimal container strength, gas barrier properties, and seal integrity.
Key Features
- Dual Measurement: Simultaneously measures wall thickness and external bottle dimensions.
- Non-Contact Technology: Ensures accurate, repeatable results without damaging samples.
- Automated Inspection: Features one-button operation, automatic bottle profiling, and visual programming for arbitrary testing points.
- Data Analysis: Captures 500 points per rotation with automatic min/max/average calculation and integrated SPC data management.
Technical Parameters
- Measuring Range: 0–2 mm
- Accuracy: ±0.02 mm
- Max. Bottle Size: 2.5L PET bottle
- Dimensions: L750 x W65 x H1200 mm
