Instrument manufactured by:
CanNeed-ISD-3000
Piercing and Sampling Device
Piercing and sampling device for bottled and canned beer — handles containers up to 360 mm tall, 92 mm dia; feeds sample directly to O2 or foam testers.
Request a quotation
Technical specifications
| Detection Object | Beer/Wort/Malt/Microorganisms |
| Test Items | Dissolved oxygen/total oxygen |
| Testing Occasions | laboratory |
Applications

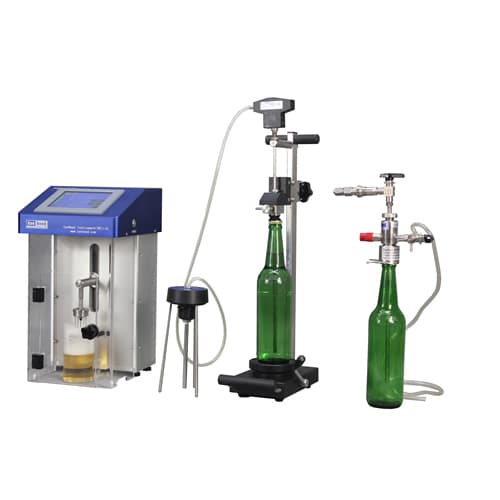

The CanNeed-ISD-3000 Piercing and Sampling Device is designed for precise, pressurized sampling of bottled or canned beverages. By securing the container on the base and engaging the handle, the needle pierces the vessel to allow CO2-driven liquid transfer directly into your measuring instruments. This device is essential for quality control labs performing foam stability analysis or dissolved oxygen (DO) testing in beer and carbonated beverages.
Technical Parameters
- Sample inlet pipe: Φ6-Φ4 mm
- Bottle / Can Height: 50 mm to 360 mm
- Bottle / Can Diameter: Max 92 mm
- Dimensions: 250 x 170 x 550 mm (L x W x H)
