Pop & Tear Tester
Pop & Tear Tester for easy-open ends — 7 test modes, 0–100 N range, 0.1 N resolution, RS-232 output for SPC integration.
Applications

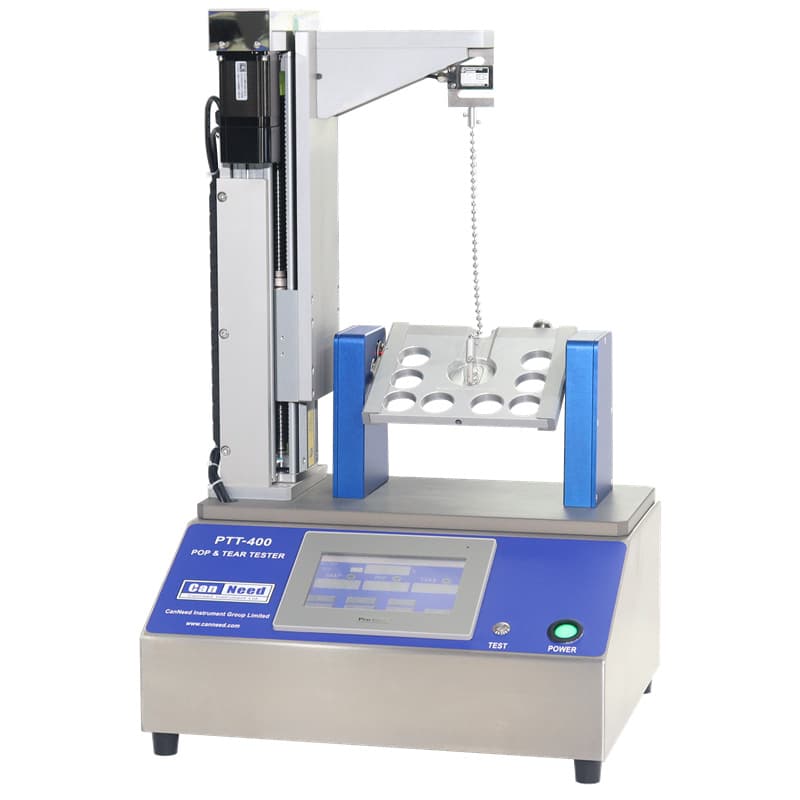

The CanNeed PTT-400 Pop & Tear Tester is a precision instrument designed for quality control in the food & beverage packaging industry. It accurately measures pop and tear force, ring rotary force, and ring detaching force for various easy-open ends.
The device features 7 testing modes (RP, SOT, EO, OVAL, SNAP, RF, and RPP) and is compatible with round ends ranging from 113 to 603. Customized clamps are available for oval or rectangular ends up to 163 mm. Operators simply hook the ring and press “test” to initiate the automated microprocessor-controlled sequence.
Advantages
- Industry-standard testing accuracy
- PLC touch-screen control with automated data collection
- RS-232 communication for seamless SPC data export
- Optional CND_Track analyzing software integration
- Calibration-ready design for simplified maintenance
- Pneumatic-free operation (no air source required)
Technical Parameters
Measuring range: 0-100N (additional ranges available)
Resolution: 0.1 N
Sample compatibility: 113–603 round ends (specify size at order)
Interface: RS232C
Units: N
Power supply: 230V/50Hz
