Instrument manufactured by:

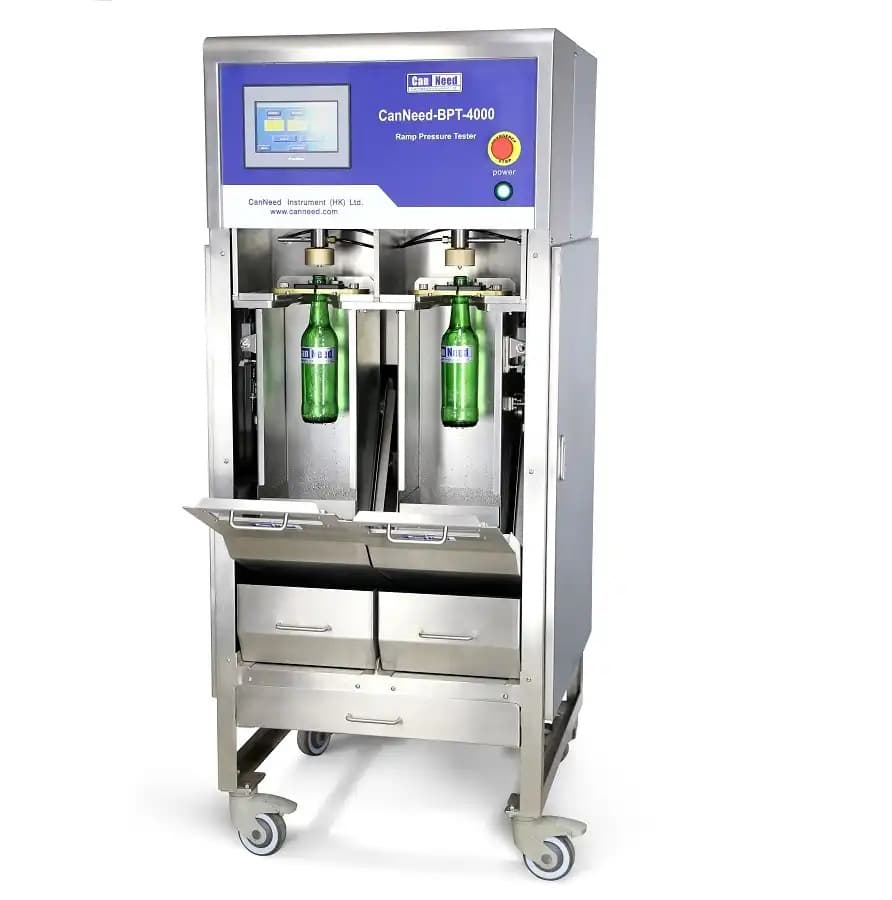

CanNeed-BPT-4000
Ramp Pressure Tester
Ramp pressure tester for glass containers, 0–6 MPa range with dual-position servo control — automatic clamping and fragment collection cut test cycle time.
Request a quotation
Technical specifications
| Detection Object | Glass bottles/Bottled beer/Wine/Whiskey |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |
Watch the BPT-4000 Ramp Pressure Tester in operation
Applications
The BPT-4000 Ramp Pressure Tester is a high-precision instrument designed for the food & beverage and pharmaceutical industries to perform critical pressure and burst testing on glass containers. Featuring a dual-position design for maximum throughput, this PLC-controlled system utilizes an LCD touch screen, automatic clamping, and servo-driven pressure control to ensure repeatable, accurate results. Users can select between linear pressurization and pressure-maintaining test modes to meet specific quality control requirements.
Advantages
- Industry-standard testing accuracy
- High-efficiency dual-position operation
- Automatic clamping and pressure seal compensation
- Integrated safety interlocks on the test chamber door
- Automated bottle neck ejection with fragment collection
Technical Parameter
- Measure range: 0–6 MPa
- Resolution: 0.01 MPa
- Water supply: 0.1–0.3 MPa
- Working temperature: 0–50º C
- Power supply: 110–120 or 220/240V, 50/60 Hz
- Output interface: RS232
- Dimensions: 830mm × 580mm × 1600mm
