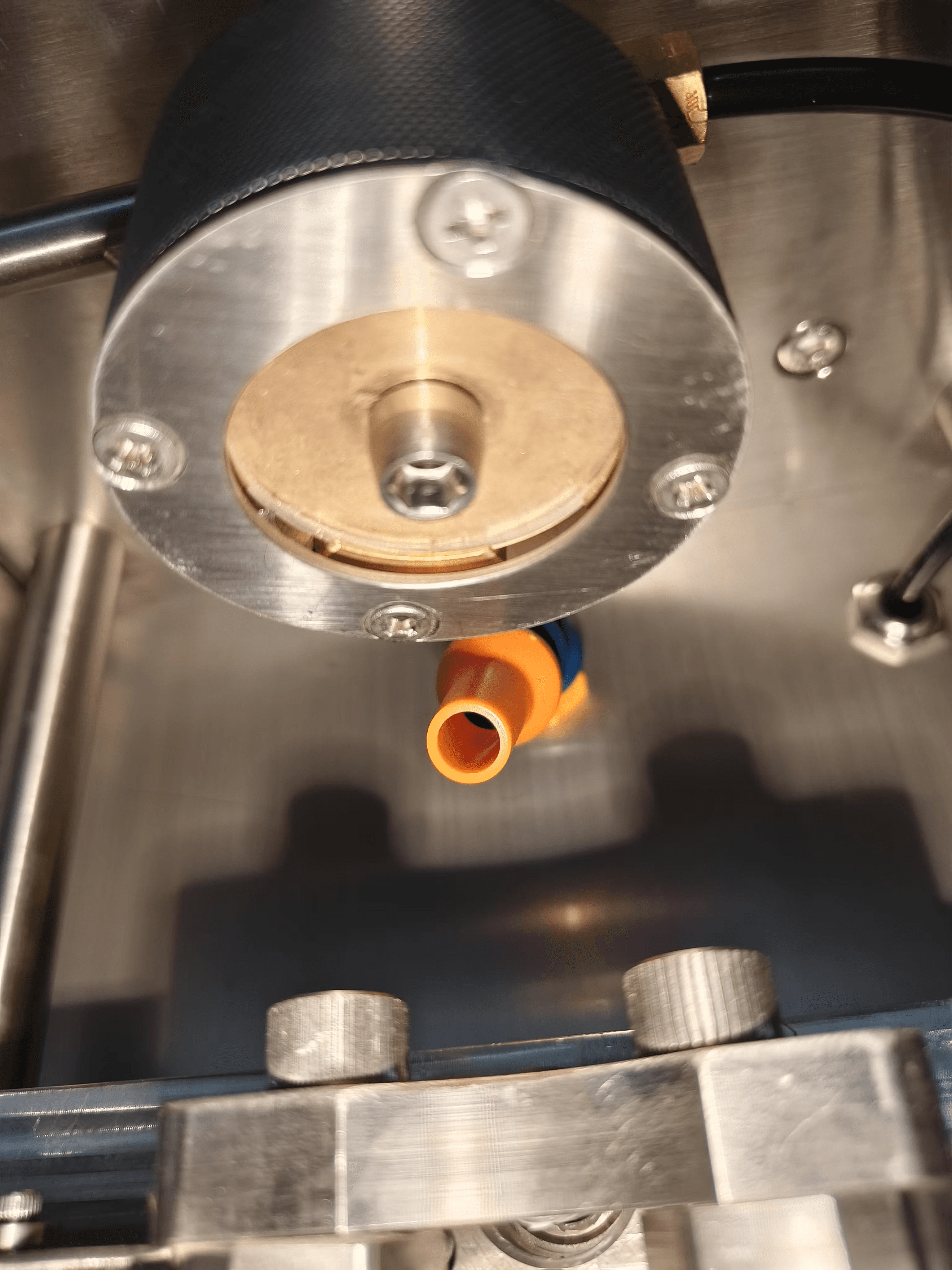

The CanNeed-BPT-4010 Ramp Pressure Tester is a high-precision, dual-station instrument designed for internal pressure resistance, burst, and passing tests on glass containers. Engineered to meet GB-4544-2020 standards, it is an essential safety tool for quality control in the beverage and glass manufacturing industries.
Key Features
- Dual-Station Efficiency: Simultaneous testing of two samples increases throughput and sampling rates.
- Advanced Control: PLC-based system with intuitive touch-screen interface and multi-language support.
- Automated Operation: Features automatic water-filling, sample clamping, and pressure regulation via servo motor for high repeatability.
- Safety-First Design: Includes a secure protective door with interlock, water/electricity/air segregation, and an integrated waste collection system to ensure operator safety and a clean workspace.
- Data Management: Stores up to 1,000 test results with RS232C output for seamless integration with database software.
- Measurement Modes: Supports pressure maintaining, linear pressurization, and P60 testing modes.
Technical Specifications
ModelCanNeed-BPT-4010Measure Range0–6 MPaResolution0.01 MPaWater Supply0.15–0.3 MPaAir Supply0.4–0.5 MPaOperating Temp0–50°CPower Supply110-120/220-240VAC, 50/60 HzDimensions880 x 1030 x 1600 mm
