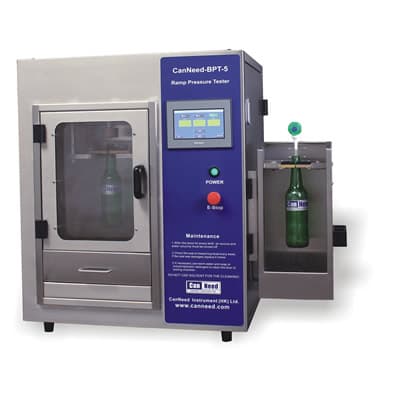

CanNeed-BPT-5
Ramp Pressure Tester (Automatic & Desktop)
Automatic desktop ramp pressure tester for glass bottles, 0–6 MPa range, 0.01 MPa resolution — servo-controlled with auto-clamping, fill, and burst/acceptance testing.
Request a quotation
Technical specifications
| Detection Object | Glass bottles/Bottled beer/Wine/Whiskey |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |
Applications
The CanNeed-BPT-5 Ramp Pressure Tester is an essential industrial instrument for verifying the structural integrity and burst resistance of glass bottles in food, beverage, and pharmaceutical packaging lines. This automatic, desktop-mounted system performs both acceptance and burst testing with precision, utilizing a servo-controlled pressurization system for superior repeatability. The unit features automated clamping and water filling, with real-time data logging and selectable test modes, including linear pressurization, pressure holding, and P60 testing.
Advantages
- Industry-standard performance for glass bottle quality control with high-precision pressure measurement.
- Compact desktop design optimized for high-efficiency testing environments.
- Fully automated clamping and water filling processes.
- Intuitive PLC and touch screen interface with multiple configurable test protocols.
- Integrated safety interlocks on test chamber doors for operator protection.
- Automated glass fragment collection and easy-clean design for simplified maintenance.
- Durable angle steel framework with isolated water, electrical, and pneumatic systems for moisture protection.
- Servo-motor controlled pressure for high accuracy and consistent repeatability.
Technical Parameter
● Test range: 0-6 MPa● Resolution: 0.01 MPa
● Water supply: 0.1~0.3 MPa
● Working temperature: 0-50º C
● Power supply: 110-120 or 220/240V, 50/60 Hz
● Output interface: RS232
