Instrument manufactured by:

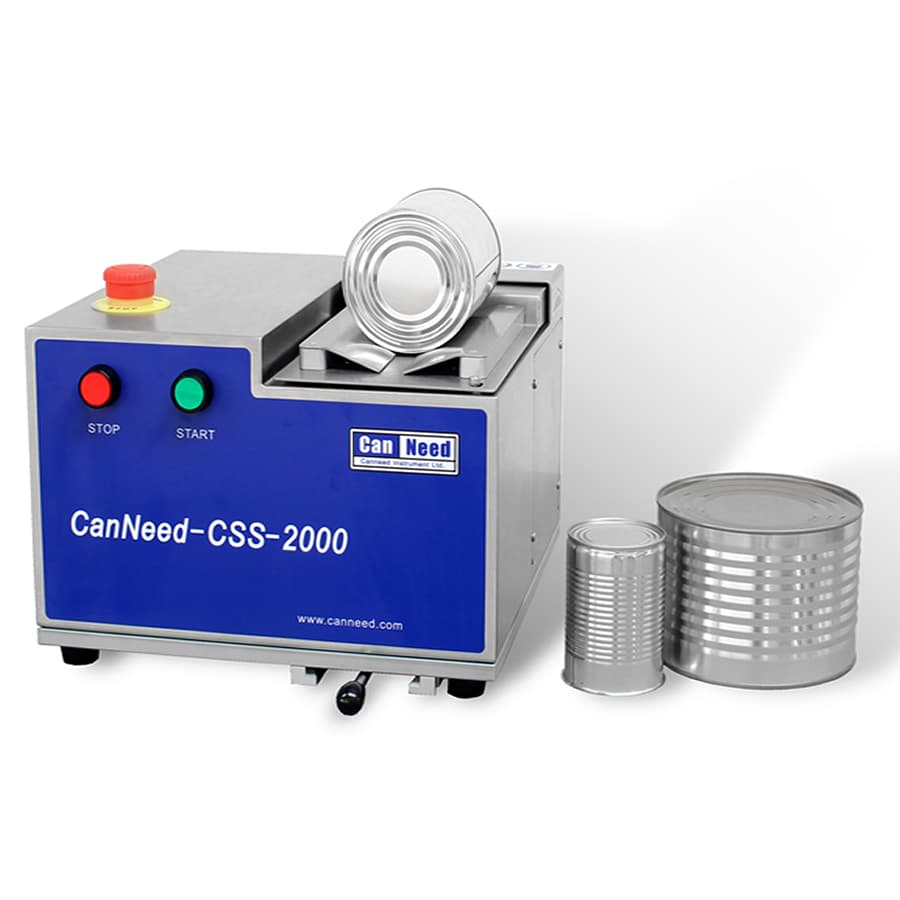

CanNeed-CSS-2000
Seam Saw
Seam saw cuts 2- and 3-piece cans (45–260 mm dia.) on a linear rail for burr-free double-seam inspection cross-sections.
Request a quotation
Technical specifications
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | laboratory |
Applications
The CanNeed-CSS-2000 Seam Saw is a precision instrument designed to cut double-seam cans for quality inspection. The sample moving platform, mounted on a linear rail, ensures a clean, burr-free cut, providing a clear image for use with the CanNeed Seam Sight automatic seam monitor.
Advantages
1. Safety Performance:
- Integrated metal contact switch: The saw blade activates only upon contact with the metal, preventing accidental operation.
- Emergency stop switch for immediate power cutoff.
2. Convenience:
- Features a bottom rail-type stretching groove for easy removal of iron filings without dismantling the unit.
Technical Parameter
- Sample can diameter: 45-260 mm (custom sizes available)
- Sample type: 2- and 3-piece cans, aerosol cans
- Saw blades: 80 x 22 x 0.5 mm
- Speed: Approx. 1,000 r/min
- Power supply: 200 V
- Power: 100 W
- Dimensions: L370 x W340 x H200 mm
- Weight: 20 kg
