Seamer clearance Gauge and Seam Monitor
Seamer clearance gauge measures roll height and lateral distance from chuck at 0.005 mm resolution — enables predictive maintenance before seams go out of spec.
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | Online/packaging line |
Applications

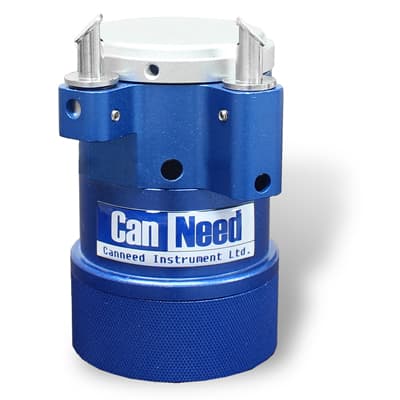

The CanNeed-SCG-110 Seamer Clearance Gauge provides a precise, efficient method for setting up industrial seamers in food and beverage packaging lines. It accurately measures both roll height off the chuck and the lateral distance between the roll and chuck.
By shifting the focus from post-seam inspection to proactive setup, the SCG-110 enables predictive maintenance. This allows operators to identify variations between seamer heads and ensure all heads perform at nominal values, significantly optimizing the can seaming process.
Compatible with most major seamer models, this gauge delivers measurable performance improvements and reduces downtime across production lines.
Advantages
- Rapid adjustment of 1st and 2nd operation seaming rolls.
- Optimized seamer performance and consistency.
- Reduced seamer stop rates and maintenance duration.
- Simplified, user-friendly adjustment procedures.
- Early detection of faulty chucks, roll bearings, and shanks.
- Visual identification of broken or eroded components.
- Fast return on investment through improved line efficiency.
Technical Parameter
- Resolution: 0.005mm (application dependent)
- Minimum clearance: 0.04 mm
