Secure Seal Tester

Applications

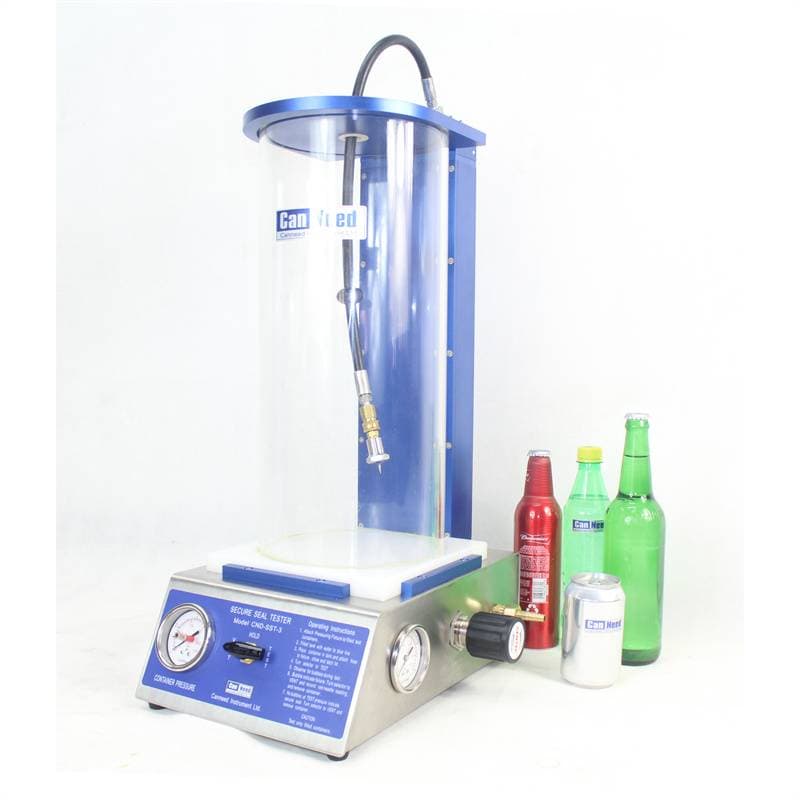

The CanNeed-SST-3 Secure Seal Tester is an essential instrument for verifying seal integrity on glass containers, plastic bottles, and metal cans within the food and beverage industry. Designed for precision, the CND-SST-3 supports aluminium roll-on, twist crowns, and plastic caps. By utilizing compressed air, nitrogen, or carbon dioxide to detect gas leakage, this Secure Seal Tester provides significantly more sensitive and accurate readings than liquid-based testing methods.

Advantages

1. Positive Pressure Method: Ensures reliable testing even at pressures below 1 bar, overcoming limitations inherent in negative pressure systems.
2. Durable Construction: Built from anodized aluminium and stainless steel for long-term reliability in industrial environments.
3. Integrated Pressure Control: Features an internal pressure-reducing valve for easy, precise setting of maximum testing pressure.
4. Enhanced Safety Features: Includes a series safety valve, rapid venting, secure lid latch, and a submerged testing design for operator protection.
5. Adjustable Flow Control: Offers customizable pressurization rates, allowing users to set the time to reach 1 MPa between 5 and 60 seconds.
6. High-Precision Measurement: Engineered for high sensitivity and consistent, repeatable results.

Technical Parameter

● Pressurization Media: Compressed air or CO2
● Pressure meter resolution: 0.05 Mpa
● Measuring pressure range: 0–16 bar (1.6 Mpa)
● Max. sample dimensions: 330 × 150mm (height × diameter)
● Physical dimensions: L320mm x W380mm x H720mm
