Secure Seal Tester(6 stations)
6-station seal integrity tester for cans, glass, and PET bottles — detects gas leakage up to 16 bar for food and beverage QC.
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Tightness/Leakage |
| Testing Occasions | laboratory |
Applications

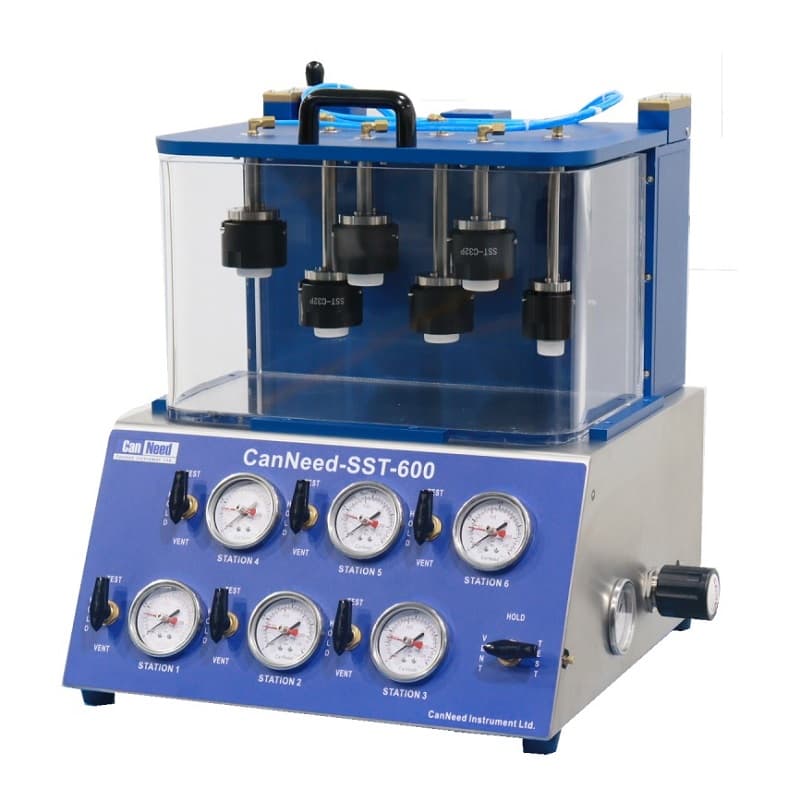

The CanNeed-SST-600 Secure Seal Tester is designed to verify seal integrity on glass, plastic containers, and metal cans. Engineered for the specific requirements of aluminum roll-on, twist-off, and plastic cap closures, the system utilizes compressed air, nitrogen, or carbon dioxide to detect gas leakage, providing higher sensitivity than liquid-based testing. Its rugged construction, featuring anodized aluminum and stainless steel, is suitable for both demanding production line environments and laboratory quality control.
Standards of Qualified Sealing Integrity:
PET bottled beverage (non-carbonated): 0.2 Mpa
PET bottled beverage (carbonated): 1.0 Mpa
Glass bottle (crown cap): 1.0 Mpa
Glass bottle (plastic/aluminum twist-off): 0.2 Mpa
Canned food or beverage: 0.2 Mpa
The system features a dual-compartment design with a transparent test tank and a stainless steel control base. Safety is prioritized through integrated features including a pressure relief valve, quick-vent lid, safety cover lock, and pressure regulation.
Advantages
- 6-station design for high-efficiency batch testing
- Compatible with compressed air or CO2 pressurization
- Comprehensive safety suite including pressure regulation and interlocked covers
- High-quality industrial components (valves, connectors, and piping) for long-term reliability
- Pressure meter resolution: 0.05 Mpa (10 psi)
- Measuring pressure range: 0–1.6 Mpa (0–16 bar)
- Maximum sample dimensions: 330mm (H) × 150mm (D)
- Unit dimensions: 520mm (L) × 460mm (W) × 600mm (H)
- Net weight: 30kg
