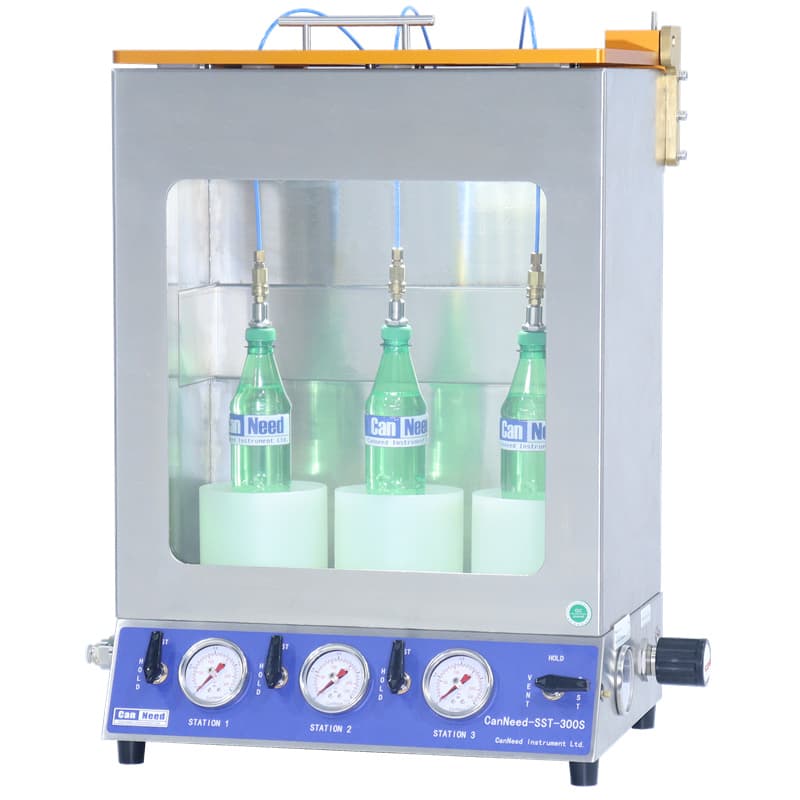

Secure Seal Tester(Pressure gauge 3 stations)

Applications

The Secure Seal Tester is an essential quality control instrument designed for the food and beverage industry to verify the integrity of capped containers. It supports the following sealing integrity standards:

Non-carbonated PET bottle beverages: 0.2 MPa (e.g., mineral water, tea beverages)

Carbonated PET bottle beverages: 1.0 MPa (e.g., cola)

Glass bottles with crown caps: 1.0 MPa (e.g., beer)

Non-carbonated glass bottles with plastic caps and aluminium screw caps: 0.2 MPa (e.g., soy sauce and baijiu)

Canned or bottled beverages: 0.2 MPa

Advantages

• Three-station testing for improved efficiency, with both puncture and cutting methods available for measurement, offering convenience and speed.
• Direct puncture head with sample fixation for easy operation, preventing measurement failures caused by improper sealing of the puncture head.
• Integrated safety protection measures.
• Uses high-quality, internationally sourced control valves, connectors, and fittings for reliable performance.
• High sensitivity and accurate readings.
• Uses compressed air or carbon dioxide for inflation and pressurisation.
• Constructed from oxidised aluminium and explosion-proof stainless steel water cans with mesh protection, ensuring durability and longevity.

Technical Parameter

Pressure gauge display range: 0-1.6 MPa

Pressure gauge resolution: 0.05 MPa

Maximum sample size: 350 × 110 mm (height × diameter) for three samples

Dimensions: L620 × W370 × H720 mm

Net weight: 25 kg
